3M Products & Supplies

3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-1500-48A, 20/Case - 7000132419

Sold As: 20-Pack
SKU: 7000132419
MPN: 7000132419
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406761
3M ID: 80610294862
5 Digit UPC: 40676
$531.71 ($26.59 / Count)
Hurry up! Current stock:

Product Description

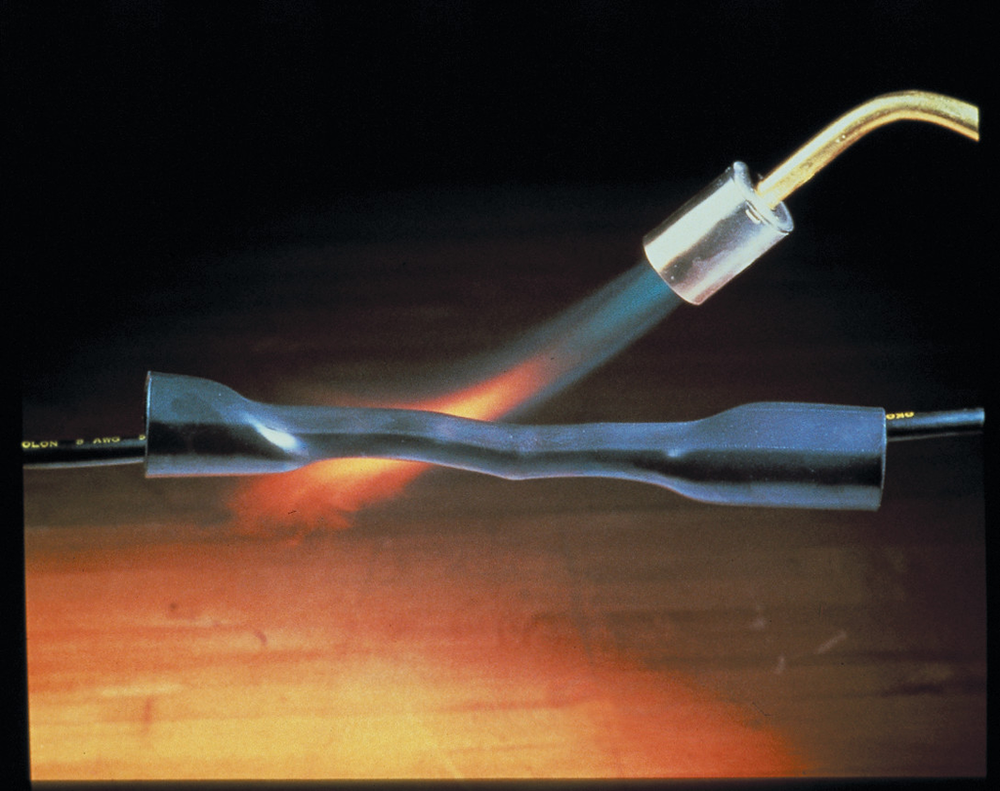

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Suitable for large transitions, splices and battery cables
  • Superior resistance to abrasion, corrosion and chemicals
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers reliable performance for electrical splices, connections and terminations
  • Flame-retardant
  • Made of black cross-linked polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialPolyolefin
Product FormSleeve-roll
Dielectric Strength500.0
Inner Diameter After Shrink (Imperial)0.5
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)230.0
Units per Case20.0
Overall Length (Imperial)48.0
Dielectric Strength (V/mil)200
Inner Diameter Before Shrink (Metric) UOMmm
Elongation UOMdB
Product ColorBlack
Shrink Ratio3:1
Overall Length (Metric) UOMm
Chemical ResistantYes
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Voltage Rating1 kV
Maximum Operating Temperature (Celsius)110.0
Minimum Shrink Temperature (Celsius)121.0
Inner Diameter Before Shrink (Metric)38.1
Operating Temperature Range (Celsius)-55 °C to +105 °C
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric)12.7
Tubing TypeMedium Wall
Dielectric Strength UOMmV
Flame RetardantYes
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Minimum Expanded Tubing I. D.1.5
ApplicationElectrical Insulation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)1.5
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial) UOMin
Overall Length (Metric)1.22
Product TypeHeat Shrink MDT
Adhesive LinedYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
