3M Products & Supplies

3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-1300-48A, 20/Case - 7000005984

Sold As: 20-Pack
SKU: 7000005984
MPN: 7000005984
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406754
3M ID: 80610294854
5 Digit UPC: 40675
$510.30 ($25.52 / Count)
Hurry up! Current stock:

Product Description

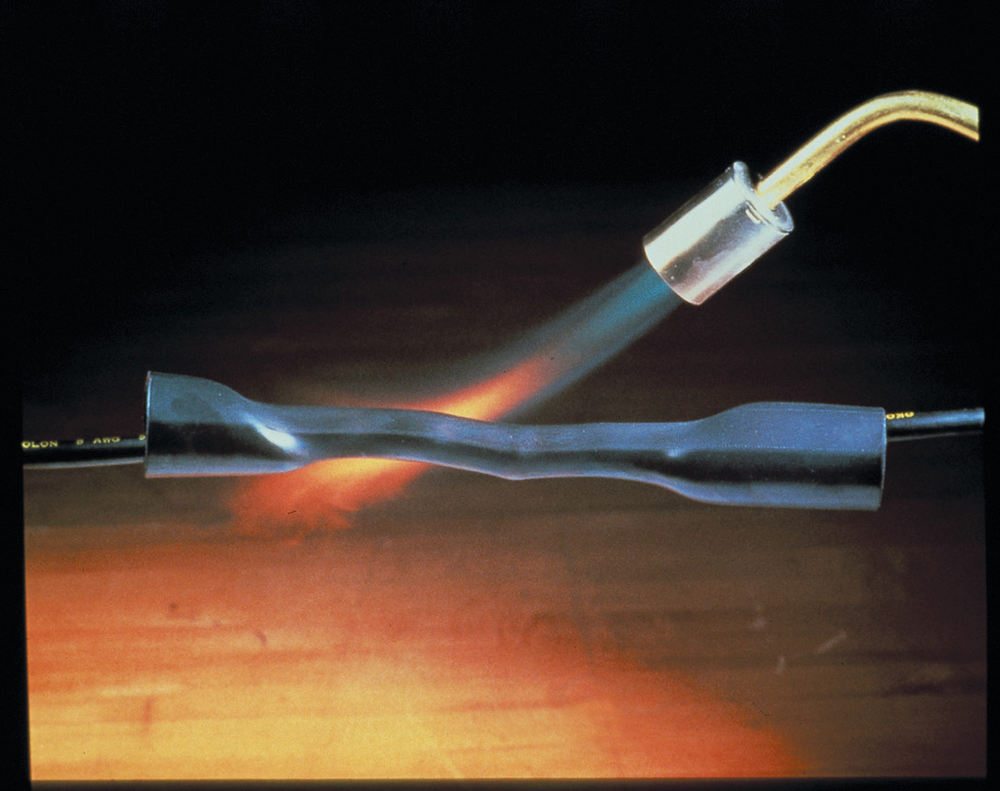

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Offers reliable performance for electrical splices, connections and terminations
  • Superior resistance to abrasion, corrosion and chemicals
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • Suitable for large transitions, splices and battery cables
  • Made of black cross-linked polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
Tubing TypeMedium Wall
Overall Length (Imperial) UOMin
Adhesive LinedYes
Product TypeHeat Shrink MDT
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Elongation UOMdB
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Chemical ResistantYes
Voltage Rating1 kV
Shrink Ratio3:1
Minimum Expanded Tubing I. D.1.3
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Flame RetardantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationElectrical Insulation
Overall Length (Metric) UOMm
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Units per Case20.0
Inner Diameter After Shrink (Metric)10.9
Inner Diameter Before Shrink (Imperial)1.3
Minimum Expanded Tubing I. D. UOMin
Dielectric Strength (V/mil)200
Maximum Operating Temperature (Celsius) UomDegree
Product FormSleeve-roll
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.43
Inner Diameter Before Shrink (Metric)33.0
Overall Length (Metric)1.22
Product ColorBlack
Minimum Shrink Temperature (Celsius)121.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Operating Temperature Range (Celsius)-55 °C to +105 °C
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
