3M Products & Supplies

3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-1700-48A, 20/Case - 7000132420

Sold As: 20-Pack
SKU: 7000132420
MPN: 7000132420
For an accurate lead time please contact us
UPC: 00054007406778
3M ID: 80610294870
5 Digit UPC: 40677
$709.38 ($35.47 / Count)
Hurry up! Current stock:

Product Description

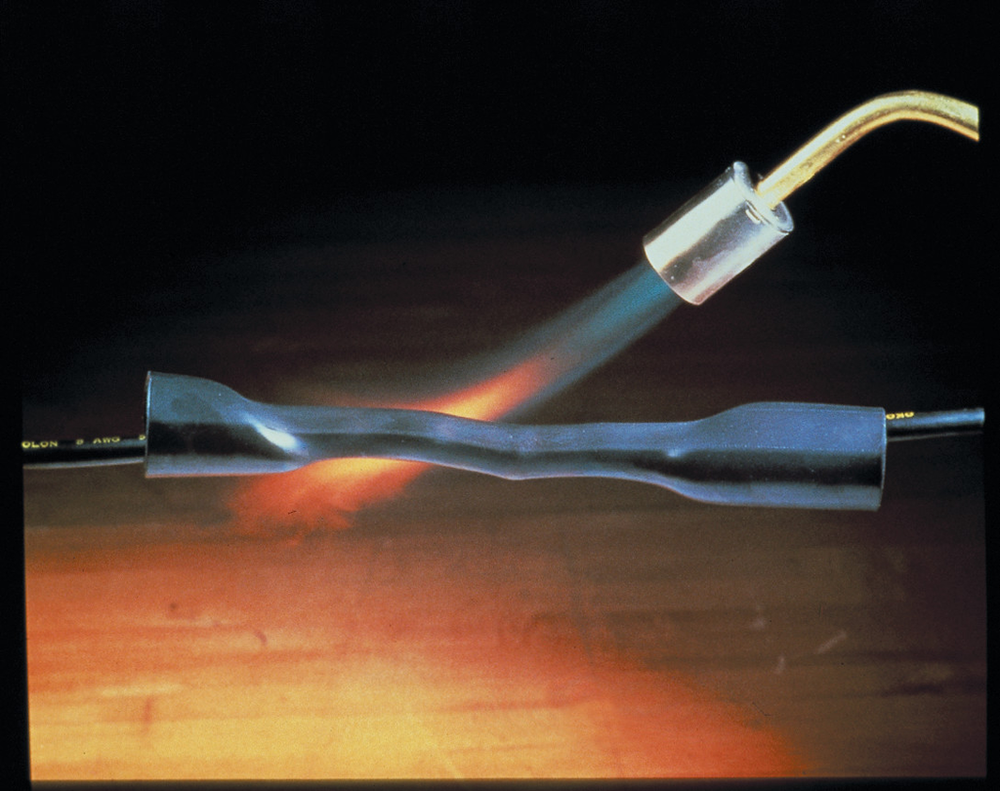

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Flame-retardant
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black cross-linked polyolefin
  • Offers reliable performance for electrical splices, connections and terminations
  • Superior resistance to abrasion, corrosion and chemicals
  • Suitable for large transitions, splices and battery cables
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product FormSleeve-roll
Overall Length (Metric)1.22
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Shrink Ratio3:1
Inner Diameter After Shrink (Metric)15.2
Inner Diameter Before Shrink (Metric)43.2
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Flame RetardantYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.1.7
Inner Diameter After Shrink (Imperial) UOMin
Units per Case20.0
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Chemical ResistantYes
Inner Diameter Before Shrink (Imperial)1.7
Dielectric Strength (V/mil)200
Operating Temperature Range (Celsius)-55 °C to +105 °C
Inner Diameter After Shrink (Imperial)0.6
Minimum Shrink Temperature (Celsius)121.0
Product ColorBlack
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive LinedYes
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Product TypeHeat Shrink MDT
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
ApplicationElectrical Insulation
MaterialPolyolefin
Elongation UOMdB
Tubing TypeHeavy Wall
Voltage Rating1 kV
