3M Products & Supplies

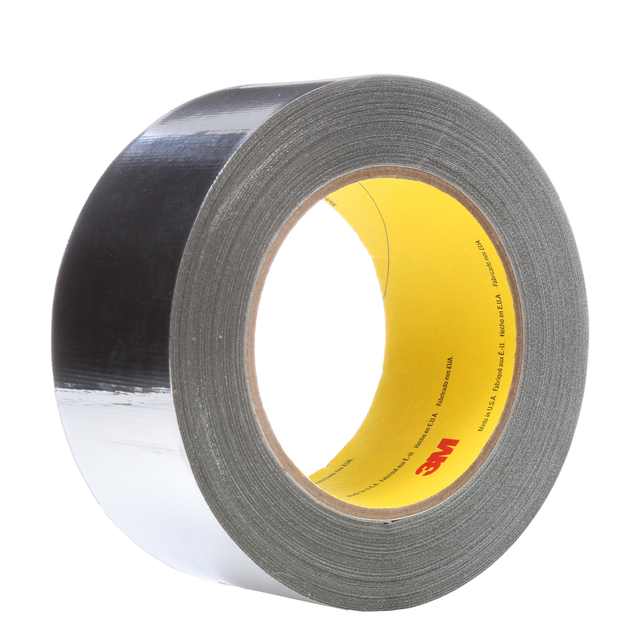

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363, Silver, 1.5 in x 36 yd, 24 Roll/Case - 7000019234

Sold As: 24-Pack
SKU: 7000019234
MPN: 7000019234
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200003356
3M ID: XT800027044
5 Digit UPC: 335
$7,404.84 ($308.54 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Elongation at Break7
Total Tape Thickness without Liner (Metric)0.185
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)1.5
Backing (Carrier) Thickness (Imperial)2.4
Overall Width (Metric)38.1
Product ColorSilver
Tensile Strength (Metric) UOMN/100mm
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Tensile Strength (Imperial)135.0
Backing (Carrier) Thickness (Metric)0.06
Adhesive TypeSilicone
Tensile Strength (Metric)2364.0
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial)7.3
