3M Products & Supplies

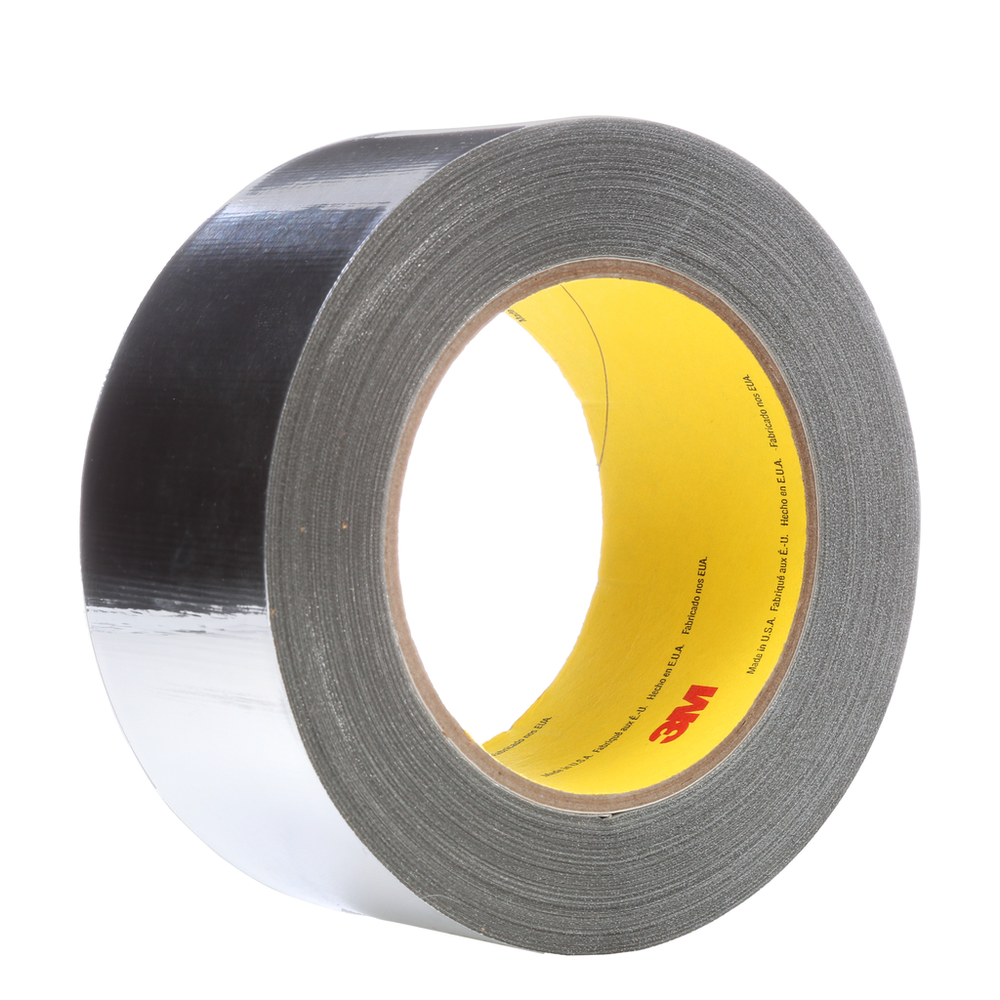

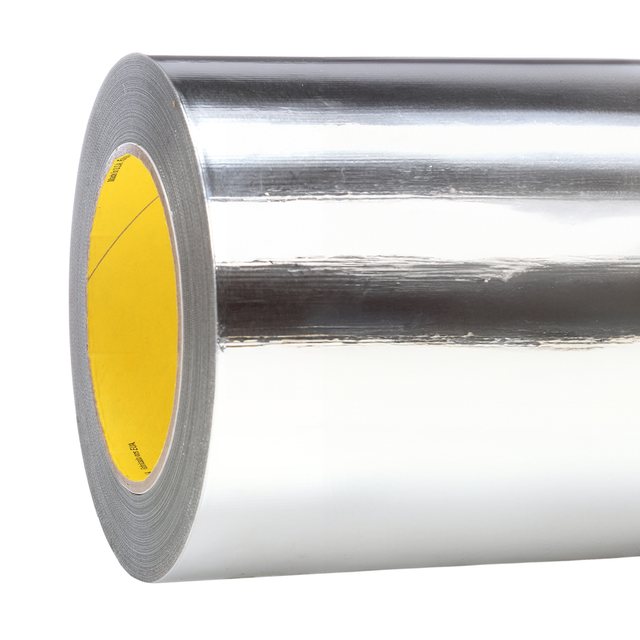

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 1 in x 36 yd, 7.3 mil, 36 Roll/Case - 7000001165

Sold As: 36-Pack
SKU: 7000001165
MPN: 7000001165
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200172946
3M ID: 70006068798
5 Digit UPC: 17294
$7,404.87 ($205.69 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Overall Length (Metric)32.9
Back Side Adhesive Thickness (Imperial)3.9
Minimum Operating Temperature (Celsius)-54.0
Units per Case36.0
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Maximum Operating Temperature (Celsius) UOMDegree
Product CategorySpecialty Tapes
Total Tape Thickness without Liner (Metric)0.19
Indoor/OutdoorIndoor/Outdoor
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)316.0
Shelf Life UOMMonth
Core Size (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.1
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.06
Overall Length (Imperial)36.0
Core Size (Imperial)3.0
Total Tape Thickness without Liner (Imperial)7.3
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)600.0
Tensile Strength (Imperial)135.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)25.4
Elongation at Break7
Tensile Strength (Metric)2364.0
Backing (Carrier) Thickness (Imperial)2.4
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Core Size (Metric) UOMcm
Adhesive TypeSilicone
Core Size (Metric)7.62
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Product ColorSilver
