3M Products & Supplies

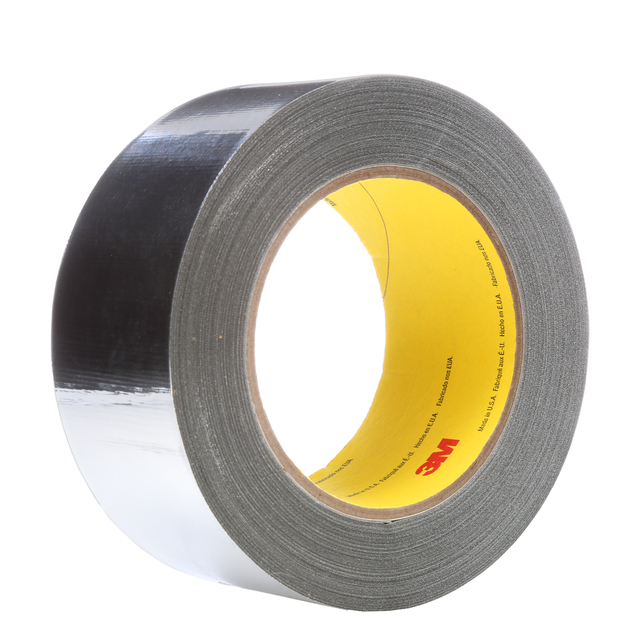

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 3 in x 36 yd, 7.3 mil, Roll - 7010535609

Sold As: 12-Pack
SKU: 7010535609
MPN: 7010535609
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998783690
5 Digit UPC: #VALUE!
$7,404.87 ($617.07 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)3.0
Overall Length (Imperial) UOMyd
Product ColorSilver
Total Tape Thickness without Liner (Imperial)7.3
Tensile Strength (Imperial)135.0
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Backing (Carrier) Thickness (Metric)0.06
Adhesive TypeSilicone
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Tensile Strength (Metric)2364.0
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)2.4
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Elongation at Break7
Overall Width (Metric)76.2
Total Tape Thickness without Liner (Metric)0.19
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM E-162, ASTM E-662, BSS-7239, FAR 25.853(a)
Product CategorySpecialty Tapes
Core Size (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Core Size (Metric)7.62
Back Side Adhesive Thickness (Metric)0.13
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-65.0
Back Side Adhesive Thickness (Imperial)3.9
Shelf Life UOMMonth
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)600.0
Core Size (Imperial)3.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius)316.0
Core Size (Metric) UOMcm
Minimum Operating Temperature (Celsius)-54.0
