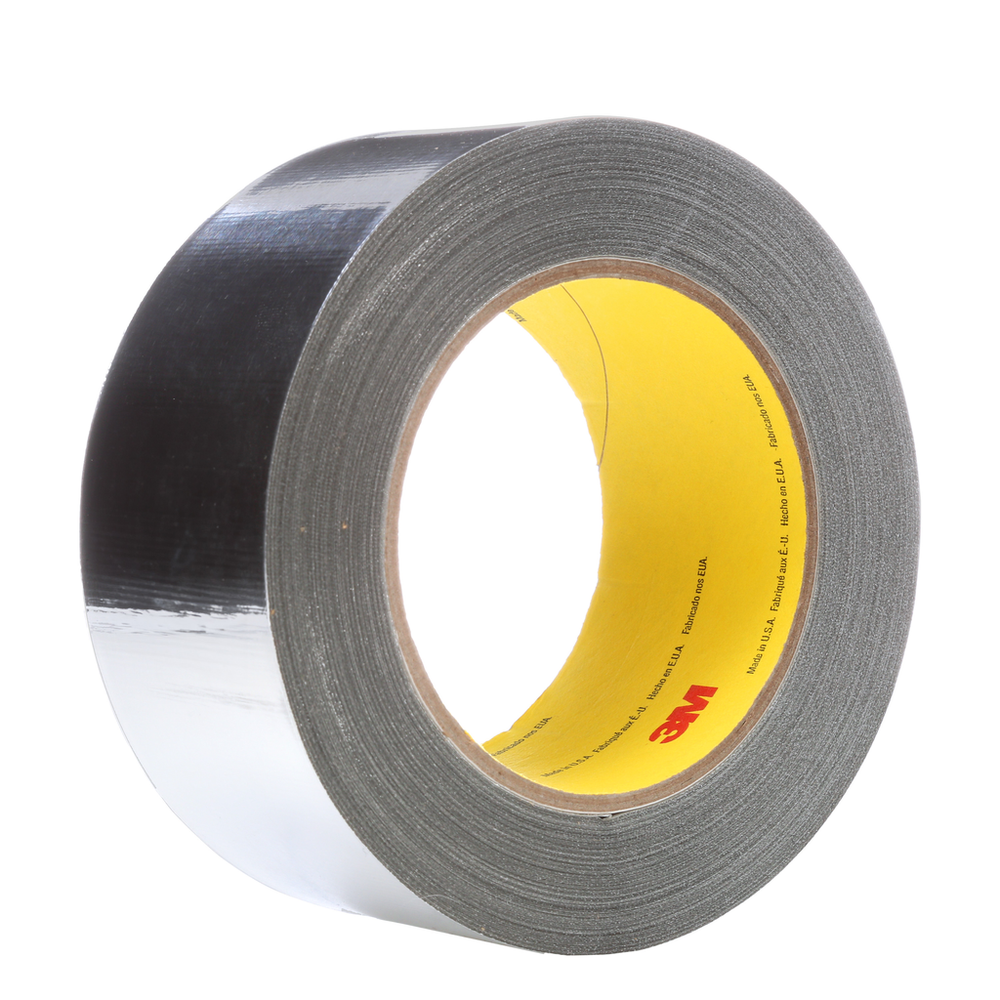

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 3/4 in x 36 yd, 7.3 mil, 48 Roll/Case - 7000048751

Sold As: 48-Pack
SKU: 7000048751
MPN: 7000048751
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200428500
3M ID: 70006220563
5 Digit UPC: 42850
$7,773.91 ($161.96 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Overall Length (Metric)33.0
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorSilver
Adhesive TypeSilicone
Backing (Carrier) Thickness (Metric)0.06
Minimum Operating Temperature (Celsius)-54.0
Total Tape Thickness without Liner (Imperial)7.3
Overall Width (Metric)19.05
Overall Width (Imperial) UOMin
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break7
Minimum Operating Temperature (Fahrenheit)-65.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.19
Tensile Strength (Metric)2364.0
Tensile Strength (Imperial)135.0
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric)0.09
Overall Width (Imperial)0.75
Backing (Carrier) Thickness (Imperial)2.4
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Units per Case48.0
Maximum Operating Temperature (Celsius)316.0
Shelf Life UOMMonth
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)600.0
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
