3M Products & Supplies

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 18 in x 36 yd, 7.3 mil, 1 Roll/Case - 7000001220

Sold As: 2-Pack
SKU: 7000001220
MPN: 7000001220
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200428494
3M ID: 70006220555
5 Digit UPC: 42849
$7,404.87 ($3702.43 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use

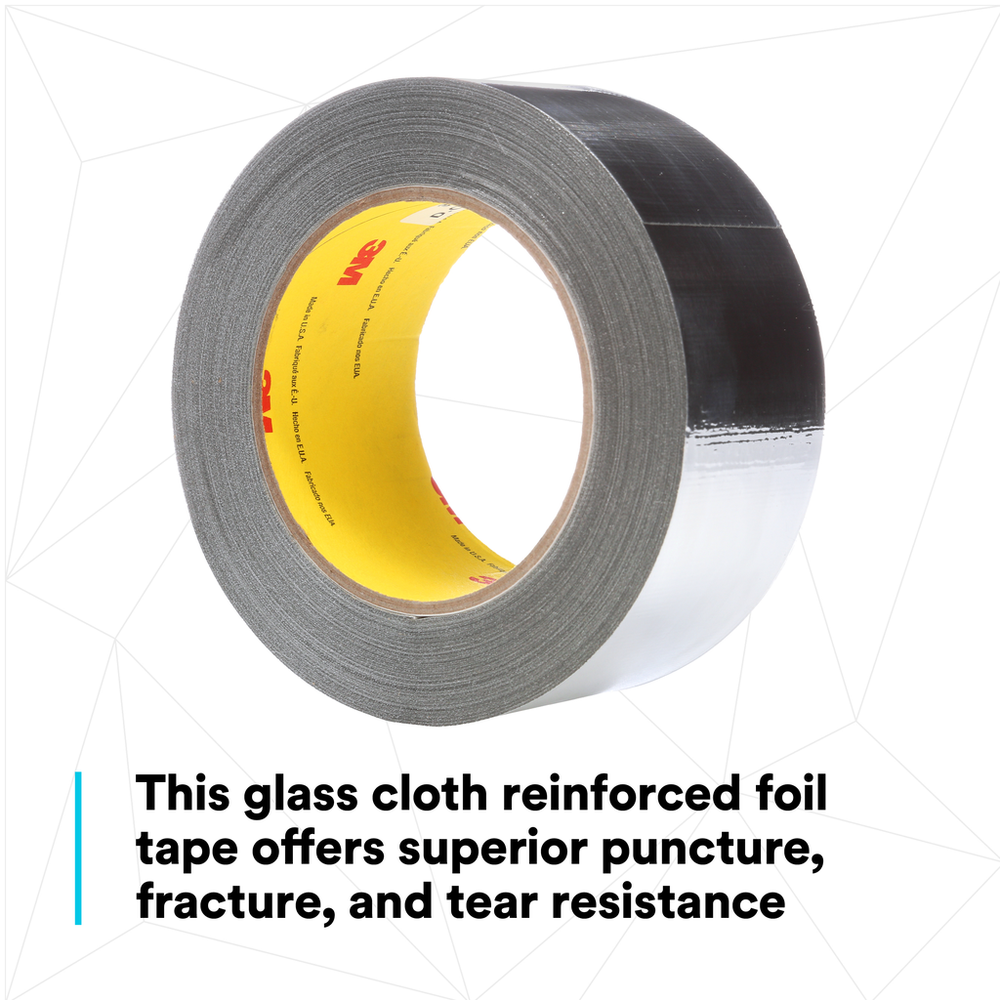

  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorSilver
Tensile Strength (Metric)2364.0
Backing (Carrier) Thickness (Metric)0.06
Tensile Strength (Imperial)135.0
Back Side Adhesive Thickness (Metric)0.09
Minimum Operating Temperature (Fahrenheit)-65.0
Maximum Operating Temperature (Celsius)316.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Imperial)7.3
Overall Width (Metric)457.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.19
Overall Length (Imperial)36.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)2.4
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case1.0
Maximum Operating Temperature (Fahrenheit)600.0
Overall Width (Imperial)18.0
Shelf Life UOMMonth
Adhesive TypeSilicone
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Overall Length (Metric)32.91
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break7
Overall Length (Metric) UOMm
