3M Products & Supplies

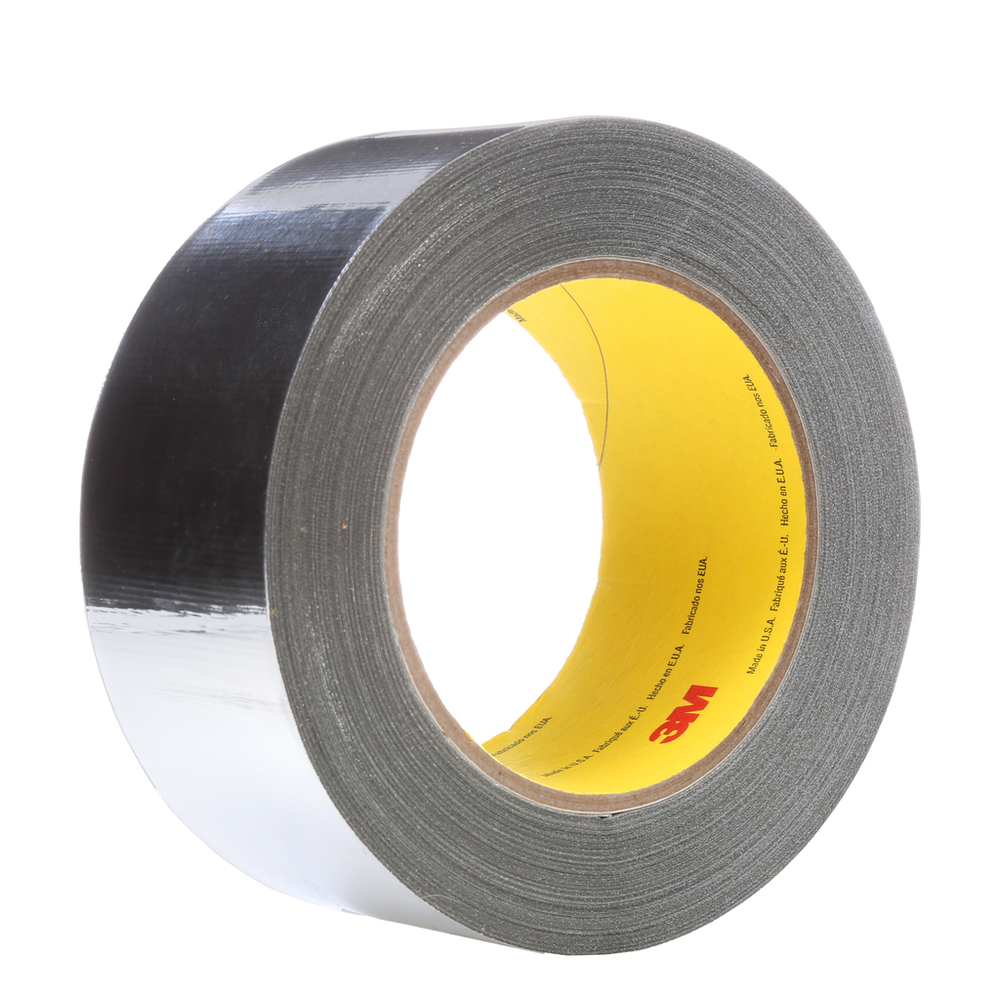

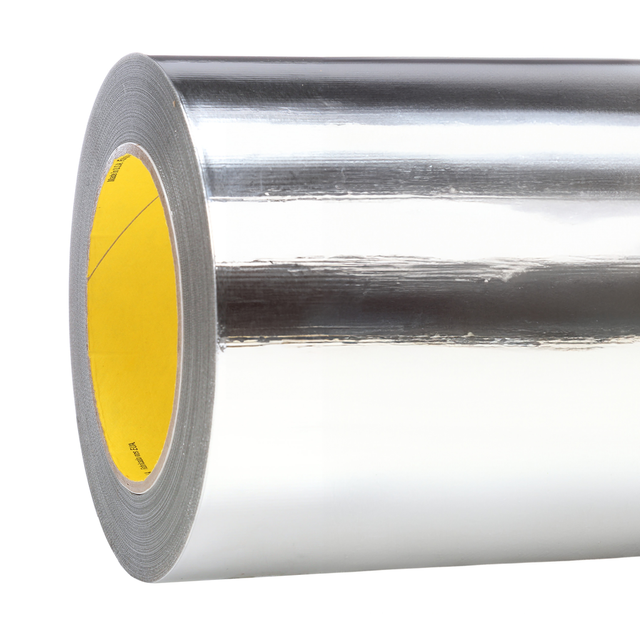

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 3.3 in x 36 yd, 7.3 mil, 12 Roll/Case - 7100172219

Sold As: 24-Pack
SKU: 7100172219
MPN: 7100172219
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060145210
3M ID: 70007519443
5 Digit UPC: 14521
$16,290.02 ($678.75 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.

Features

  • ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
  • HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
  • VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
  • MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
  • POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
  • HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Total Tape Thickness without Liner (Metric)0.19
Tensile Strength (Imperial)135.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)83.82
Adhesive TypeSilicone
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Elongation at Break7
Backing (Carrier) Thickness (Imperial)2.4
Overall Width (Imperial)3.3
Total Tape Thickness without Liner (Imperial)7.3
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)36.0
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric)2364.0
Product ColorSilver
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.06
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/100mm
Overall Length (Metric) UOMm
ApplicationShielding Cables Against Heat; Shielding Wire Harnesses Against Heat
Overall Length (Metric)32.91
Minimum Operating Temperature (Fahrenheit) UOMDegree
Core Size (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)3.9
Core Size (Metric)7.62
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit)600.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Indoor/OutdoorIndoor/Outdoor
Back Side Adhesive Thickness (Metric)0.13
Core Size (Imperial)3.0
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)316.0
Core Size (Metric) UOMcm
Minimum Operating Temperature (Celsius)-54.0
Minimum Operating Temperature (Fahrenheit)-65.0
Specifications MetASTM E-162, ASTM E-662, BSS-7239, FAR 25.853(a)
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Product CategorySpecialty Tapes
