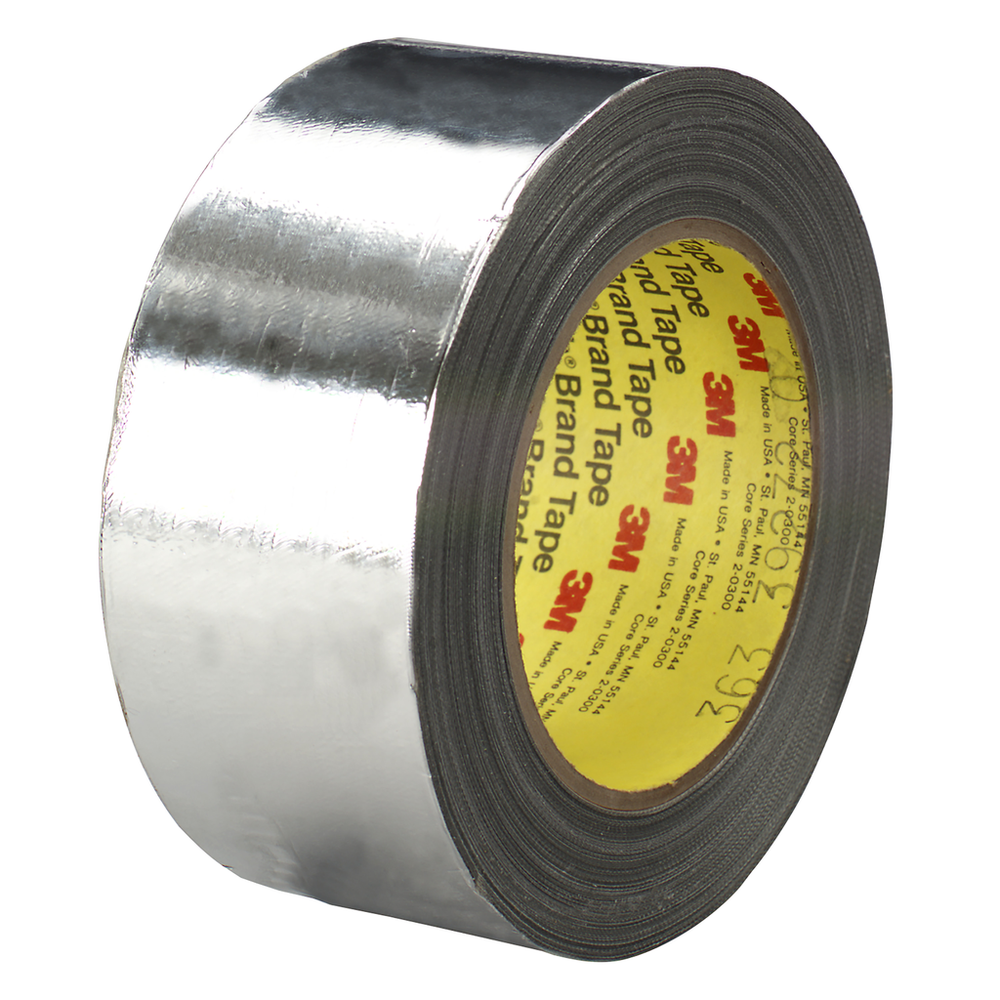

3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363L, Silver, 4 1/2 in x 108 yd, 7.3 mil, 8 Roll/Case - 7010375889

Sold As: 8-Pack
SKU: 7010375889
MPN: 7010375889
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115638848
3M ID: 70006738689
5 Digit UPC: 63884
$33,068.04 ($4133.51 / Count)
Hurry up! Current stock:

Product Description

Strong and flexible, 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363L consists of an aluminum foil, glass cloth backing combined with a pressure sensitive silicone adhesive. Ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. Commonly used in aerospace, automotive and general industrial applications.

Features

  • Pressure sensitive silicone adhesive adheres to difficult surfaces, including silicone
  • Thermally conductive and reflective backing assists with heat shielding
  • Light and flexible construction easily conforms to curved or irregular surfaces
  • Linered version of our 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363
  • High tensile strength, glass cloth reinforced foil tape offers puncture, fracture and tear resistance
  • Performs continuously over a wide temperature range from -65°F/-54°C to 600°F/316°C
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial)108.0
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric)98.75
Specifications MetFAR 25.853(a)
Backing (Carrier) MaterialAluminum Foil/Glass Cloth
Tensile Strength (Metric)236.4
Overall Width (Imperial)4.5
Backing (Carrier) Thickness (Metric)0.06
Tensile Strength (Imperial)135.0
Total Tape Thickness without Liner (Imperial)7.3
Maximum Operating Temperature (Fahrenheit)600.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.19
ApplicationShielding Wire Harnesses Against Heat
Product ColorSilver
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial)2.4
Maximum Operating Temperature (Celsius)316.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case8.0
Adhesive TypeSilicone
Overall Width (Metric)114.3
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric) UOMmm
