3M Products & Supplies

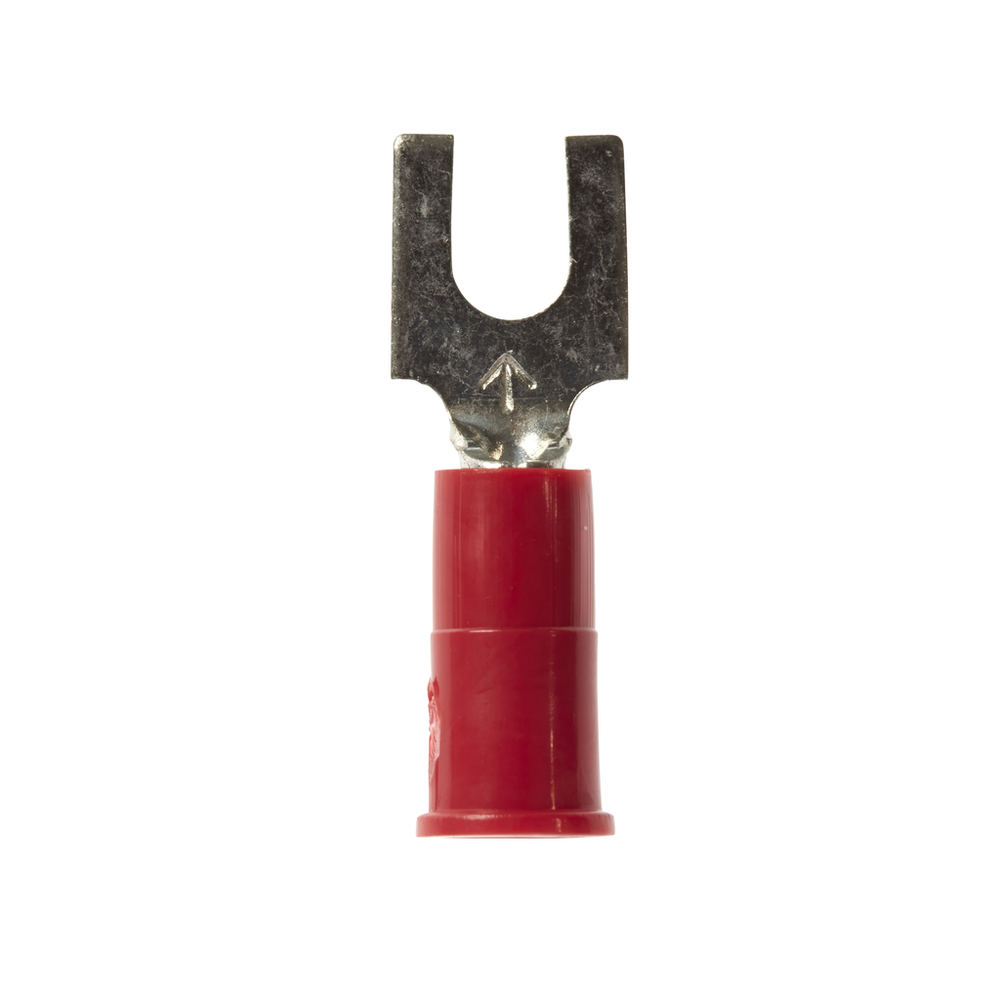

3M™ Highland™ BFV18-8Q Vinyl-Insulated Butted Seam Block Fork Terminal, 8 Stud, 22 - 18 AWG, Red, 25 per bag, 10 Bags/Case - 7000133653

Sold As: 10-Pack
SKU: 7000133653
MPN: 7000133653
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599952
3M ID: 80611602568
5 Digit UPC: 59995
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.164
Overall Width (Imperial)0.3
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeFork
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Overall Length (Metric)21.59
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric)4.166
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleBlock
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Imperial)0.85
Overall Width (Metric) UOMmm
Connection Width (Metric) UOMmm
Overall Length (Metric) UOMmm
