3M Products & Supplies

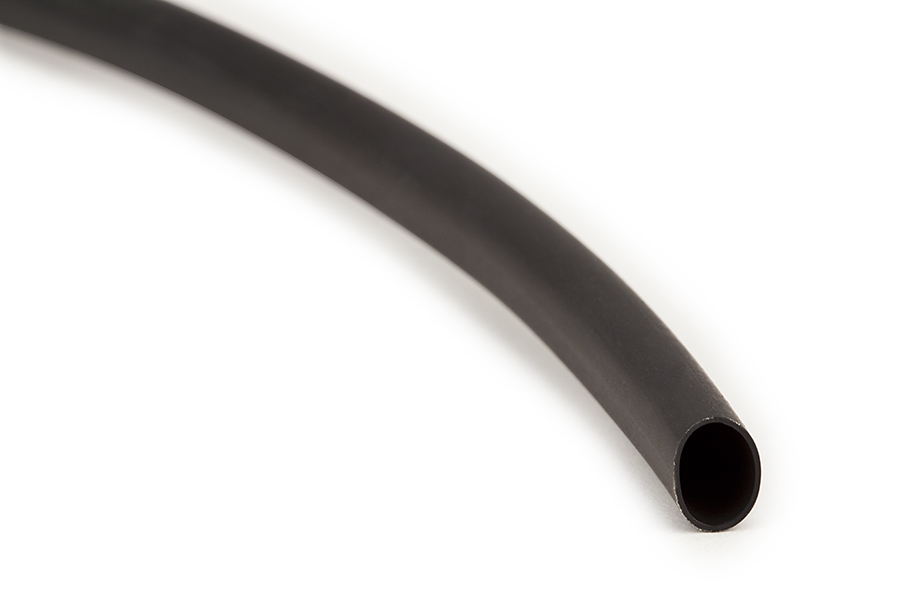

3M™ Modified Polychloroprene Tubing NST-1/2-Black: 100 ft spool length, 3 spools per carton, 3 Rolls/Case - 7100025895

Sold As: 300-Pack
SKU: 7100025895
MPN: 7100025895
For an accurate lead time please contact us
UPC: 00054007586005
3M ID: 80610675581
5 Digit UPC: 58600
$1,218.53 ($4.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing NST provides high abrasion and cut through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible modified chlorinated polyolefin
  • Highly resistant to cut-through and abrasion
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • Suitable for applications requiring a tough, highly flexible covering
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Elongation UOM%
Inner Diameter After Shrink (Imperial)0.25
Non-CorrosiveYes
Overall Length (Metric) UOMm
Operating Temperature Range (Celsius)-70 °C to +121 °C
RoHS EU CommentsContact 3M for information
Minimum Expanded Tubing I. D.1.0
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)12.7
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit)250.0
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Metric)30.5
MaterialModified Neoprene
Tubing TypeSpecial Purpose, Modified Neoprene
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)0.25
Inner Diameter Before Shrink (Imperial)0.5
Overall Length (Imperial)100.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shrink Ratio2:1
Mil SpecAMS-DTL-23053/1, Class 1 and 2
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeSpecialty Polymer Tubing
Maximum Operating Temperature (Celsius)121.0
Product ColorBlack
Operating Temperature Range (Fahrenheit)-94 °F to 250 °F
