3M Products & Supplies

3M™ Modified Polychloroprene Tubing NST-3/8-Black: 100 ft spool length, 3 spools per carton, 3 Rolls/Case - 7100025829

Sold As: 300-Pack
SKU: 7100025829
MPN: 7100025829
For an accurate lead time please contact us
UPC: 10054007585999
3M ID: 80610675573
5 Digit UPC: 58599
$1,078.78 ($3.60 / Count)
Hurry up! Current stock:

Product Description

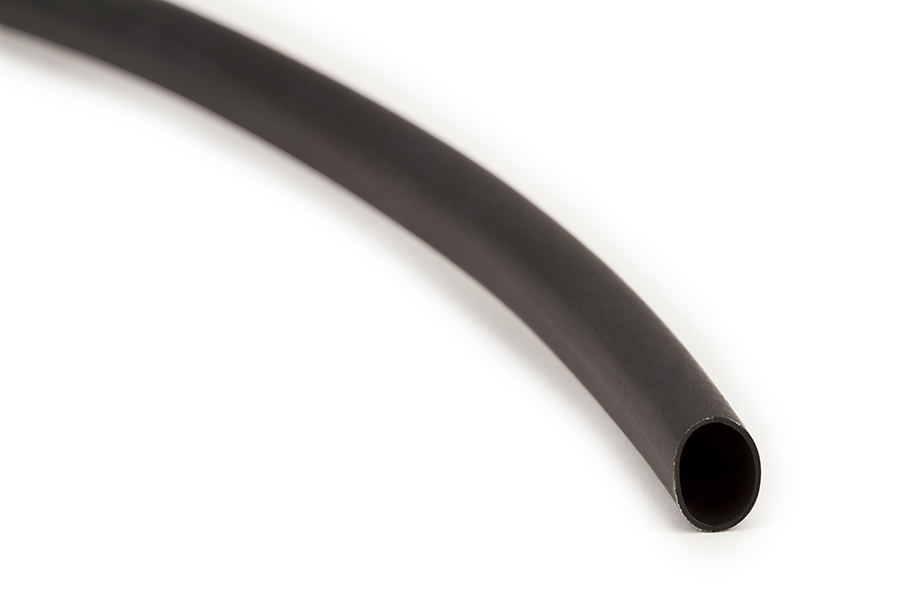

3M™ Heat Shrink Tubing NST provides high abrasion and cut through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Suitable for applications requiring a tough, highly flexible covering
  • Highly resistant to cut-through and abrasion
  • Made of black flexible modified chlorinated polyolefin
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)9.53
Operating Temperature Range (Celsius)-70 °C to +121 °C
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-94 °F to 250 °F
Non-CorrosiveYes
Maximum Operating Temperature (Celsius)121.0
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeSpecialty Polymer Tubing
Inner Diameter After Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial)0.187
RoHS EU CommentsContact 3M for information
Elongation UOMDecibel
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)100.0
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Imperial)0.375
Minimum Expanded Tubing I. D. UOMin
Tubing TypeSpecial Purpose, Modified Neoprene
Maximum Operating Temperature (Fahrenheit)250.0
Inner Diameter Before Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/1, Class 1 and 2
MaterialModified Neoprene
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.3.0
