3M Products & Supplies

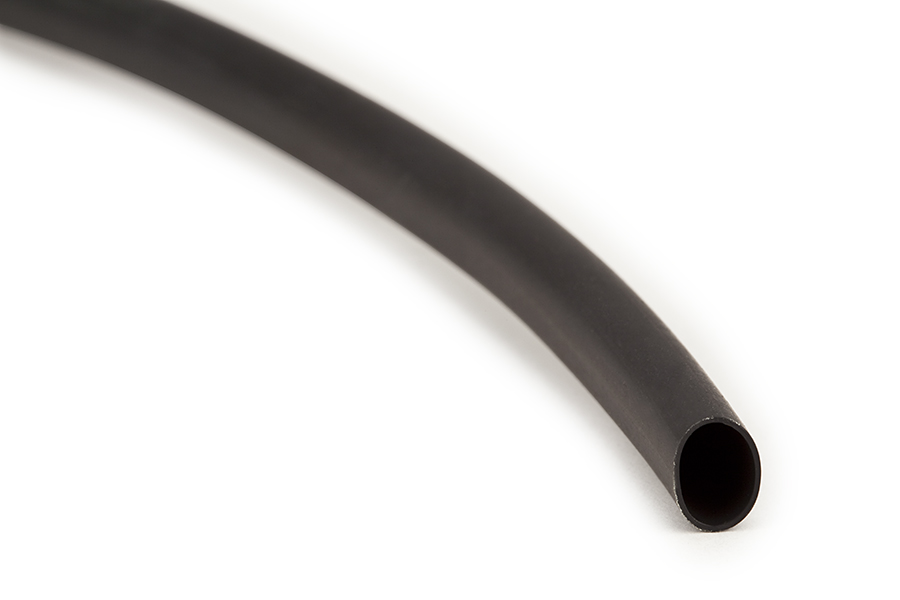

3M™ Modified Polychloroprene Tubing NST-3/4-Black: 100 ft spool length, 3 spools per carton, 3 Rolls/Case - 7100025897

Sold As: 900-Pack
SKU: 7100025897
MPN: 7100025897
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10054007585845
3M ID: 80610675425
5 Digit UPC: 58584
$4,876.61 ($5.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing NST provides high abrasion and cut through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.

Features

  • Suitable for applications requiring a tough, highly flexible covering
  • Made of black flexible modified chlorinated polyolefin
  • Flame-retardant tubing is rated for 600V applications
  • Highly resistant to cut-through and abrasion
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.375
Overall Length (Imperial)100.0
Inner Diameter After Shrink (Metric) UOMmm
Tubing TypeSpecial Purpose, Modified Neoprene
Minimum Expanded Tubing I. D.3.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSpecialty Polymer Tubing
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)19.05
MaterialModified Neoprene
Inner Diameter After Shrink (Metric)9.53
Inner Diameter Before Shrink (Imperial)0.75
Elongation UOMDecibel
Maximum Operating Temperature (Celsius)121.0
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit)250.0
RoHS EU CommentsContact 3M for information
Mil SpecAMS-DTL-23053/1, Class 1 and 2
Operating Temperature Range (Celsius)-70 °C to +121 °C
Non-CorrosiveYes
Operating Temperature Range (Fahrenheit)-94 °F to 250 °F
