3M Products & Supplies

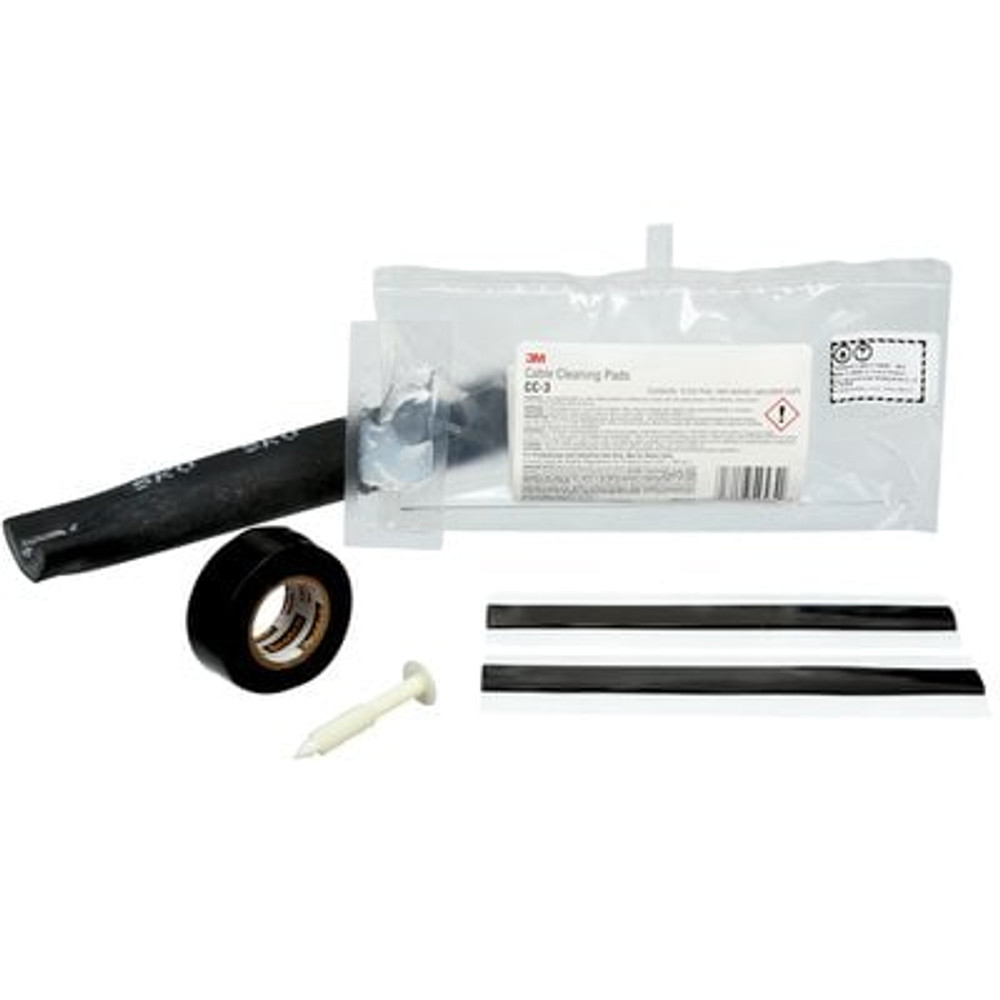

3M™ Motor Lead Pigtail Splice 5316, 5-8 kV, 8-4 AWG (feeder), 10-4 AWG (motor lead), 1/case - 7000027610

SKU: 7000027610
MPN: 7000027610
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007083139
3M ID: 80610735468
5 Digit UPC: 8313
$181.44 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Inline Splicing Kits 5316-5319 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Features

  • Has a durable EPDM rubber construction
  • Designed for use with copper compression, 1 or 2 hole lugs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Motor Lead Size4 AWG
Units per Case1.0
Range Feeder Cable (AWG & kcmil)8-4
Splice TypePigtail Only
Maximum Feeder Lead Size4 AWG
Lug Cover Length (Metric)20.32 mm
Cable ShieldingNon-shielded
Lug Cover Length8 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter0.30-0.51 Inch
Insulation Outside Diameter Range0.30-0.51 in
Maximum Bolt Length1/2 in
Insulation Outside Diameter Range (Metric)7.6-13.0 mm
Maximum Operating Voltage8 kV
Maximum Bolt Length (Metric)12.7 mm
