3M Products & Supplies

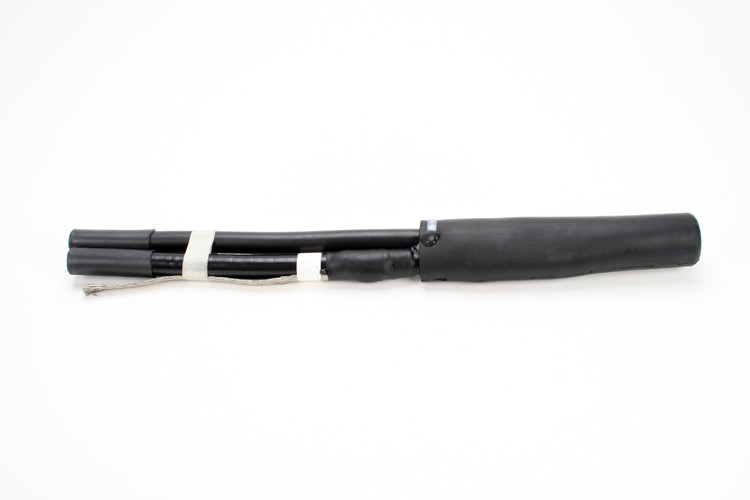

3M™ Motor Lead Pigtail or V-Stub Splice 5381, 5-8 kV, Feeder: 8-4 AWG, Motor Lead: 10-4 AWG, 1/Case - 7000133143

SKU: 7000133143
MPN: 7000133143
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128559512
3M ID: 80611425390
5 Digit UPC: 55951
$804.70 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable.

Features

  • Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
  • Rated for 5/8 kV applications
  • Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
  • Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
  • The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage
  • For use with shielded and non-shielded cables
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation Outside Diameter0.30-0.51 Inch
Number of Conductors1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter Range0.30-0.51 in
ApplicationCable Connection
Maximum Bolt Length5/8 in
Minimum Conductor Size (Imperial)1/0 AWG
Splice TypePigtail or V-stub
Maximum Operating Voltage8 kV
Maximum Bolt Length (Metric)15.9 mm
Maximum Lug Length2-1/2 in
Range Feeder Cable (AWG & kcmil)8-4
Cable TypeConcentric Neutral (CN)
Maximum Motor Lead Size4 AWG
Inner Diameter of Boot to Size of Cables (Metric)22.9 mm
Maximum Conductor Size (Metric)120 mm²
Connector IncludedNo
Maximum Lug Length (Metric)63.5 mm
Minimum Conductor Size (Metric)50 mm²
Insulation Outside Diameter Range (Metric)7.6-13.0 mm
Voltage ApplicationMedium Voltage
Inner Diameter of Boot to Size of Cables0.90 in
Units per Case3.0
Product TypeSplice
Maximum Feeder Lead Size4 AWG
