3M Products & Supplies

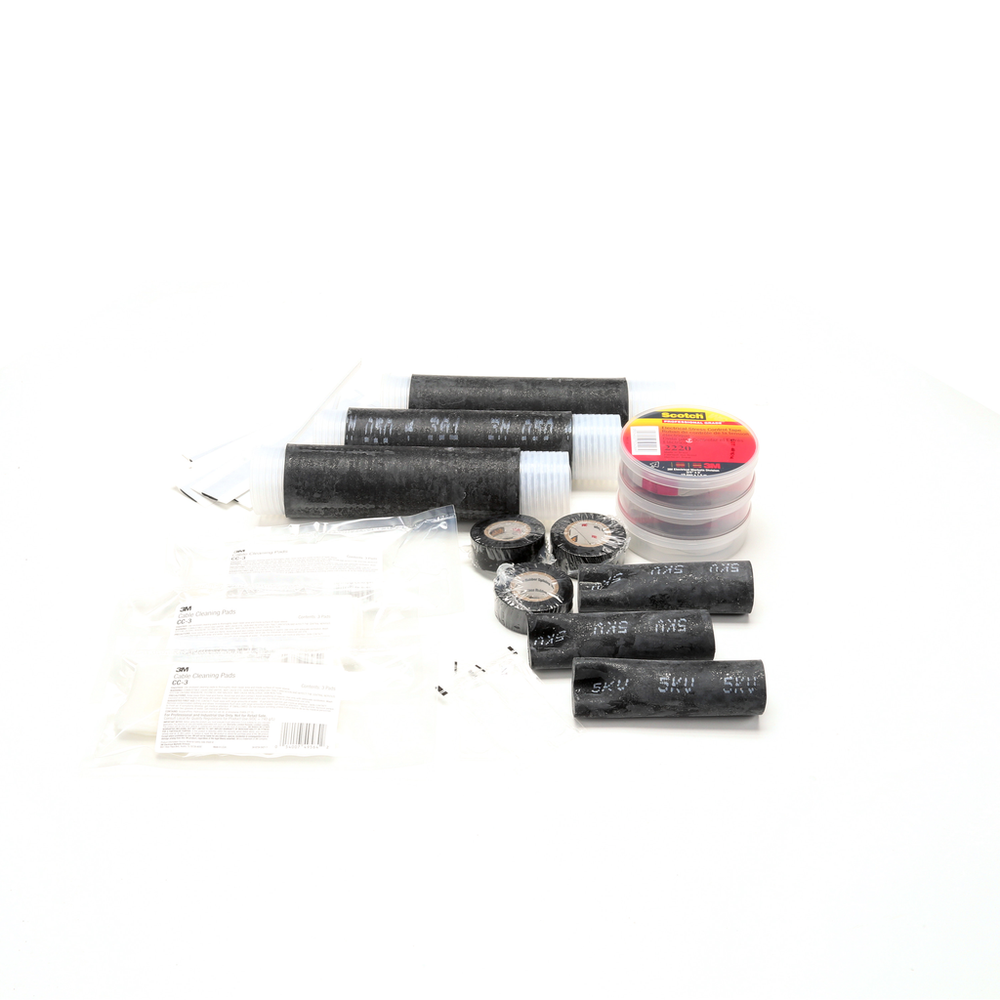

3M™ Motor Lead Pigtail Splice 5321, 5-8 kV, 8-4 AWG (feeder), 10-4 AWG (motor lead), 1/case - 7000006041

SKU: 7000006041
MPN: 7000006041
For an accurate lead time please contact us
UPC: 00054007122715
3M ID: 80610735187
5 Digit UPC: 12271
$340.47 each
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Feeder Lead Size4 AWG
Maximum Bolt Length (Metric)12.7 mm
Maximum Operating Voltage8 kV
Number of Conductors1.0
Maximum Motor Lead Size4 AWG
Insulation Outside Diameter0.30-0.51 Inch
Lug Cover Length (Metric)177.8-203.2 mm
Indoor/OutdoorIndoor
Insulation Outside Diameter Range0.30-0.51 in
Maximum Bolt Length1/2 in
Units per Case1.0
Splice TypePigtail Only
Range Feeder Cable (AWG & kcmil)8-4
Cable ShieldingNon-shielded
Lug Cover Length7-8 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Lug/Stem Connector Included in KitNo
Insulation Outside Diameter Range (Metric)7.6-13.0 mm
