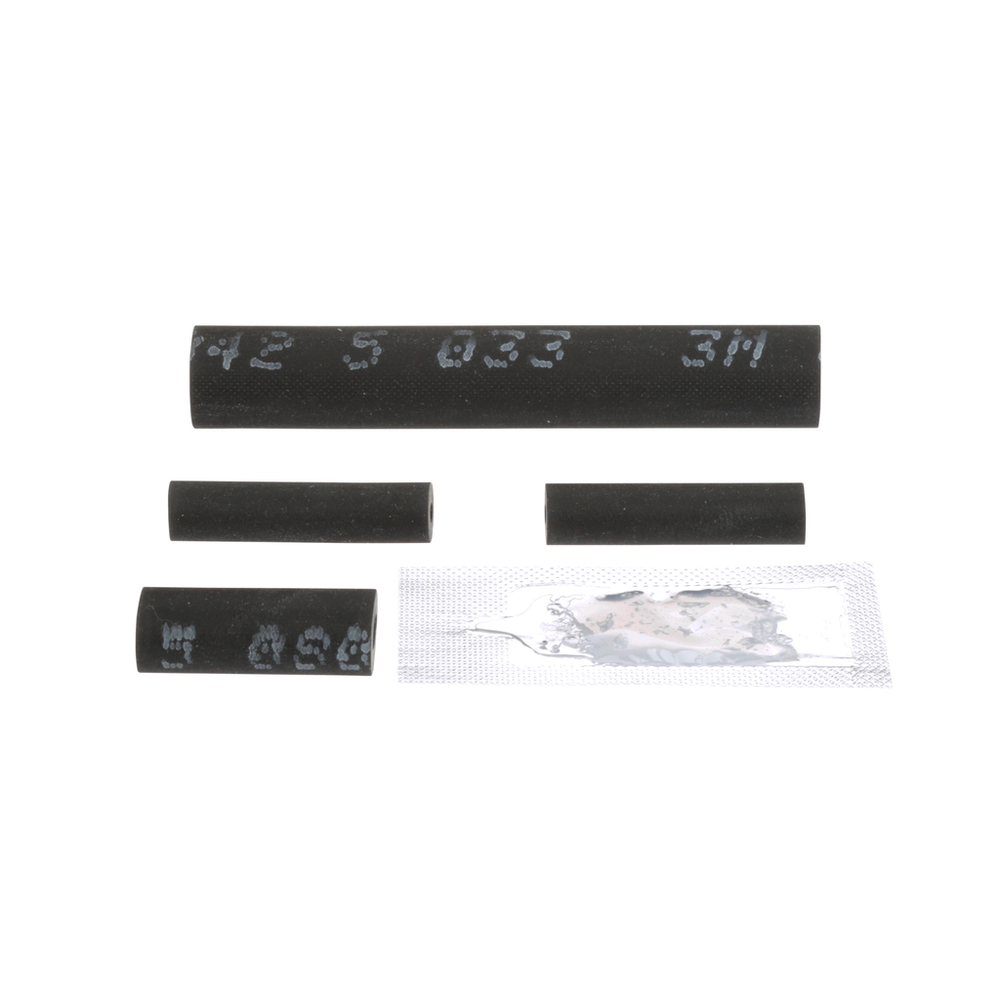

3M™ Motor Lead Inline Pigtail Splice 5311, 1 kV, 10-4 AWG (feeder), 12-4 AWG (motor lead), 1/case - 7100017508

SKU: 7100017508
MPN: 7100017508
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007122678
3M ID: 80610123301
5 Digit UPC: 12267
$131.48 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Inline Splicing Kits 5311-5314 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Features

  • Designed for use with copper compression, 1 or 2 hole lugs
  • Has a durable EPDM rubber construction
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1/Case
Product ColorBlack
Application/IndustryCommercial Construction
Kit Includes(3) Adapter Sleeves
Maximum Bolt Length1/2 in
Maximum Feeder Lead Size4 AWG
Insulation Outside Diameter Range8 to 4 AWG: 0.30 to 0.36 in
Units per Case1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter by Conductor Size (Metric)12-8 AWG (4.3-6.1 mm), 8-4 AWG (7.6-9.1 mm)
Splice Cover Inner Diameter12-8 AWG: 0.14 in / 8-4 AWG: 0.24 in
Insulation Outside Diameter Range (Metric)8 to 4 AWG: 7.6 to 9.1 mm
Splice Cover Inner Diameter (Metric)12-8 AWG: 3.6 mm / 8-4 AWG: 6.1 mm
Maximum Operating Voltage1 kV
Maximum Bolt Length (Metric)12.7 mm
Splice Cover Length (Metric)101.6-127.0 mm
Splice Cover Length4-5 in
Splice TypeInline
Range Feeder Cable (AWG & kcmil)10-4
ApplicationUsed on Cables with a Rated Operating Temperature of 90 deg C and an Emergency Overload Rating of 130 deg C. To Splice (Insulate and Seal) Motor Lead Connections for 1000V and Less Cables Sized 16 AWG to 500 kcmil
Insulation Outside Diameter by Conductor Size12-8 AWG (0.17-0.24 Inch), 8-4 AWG (0.30-0.36 Inch)
Maximum Motor Lead Size4 AWG
