3M Products & Supplies

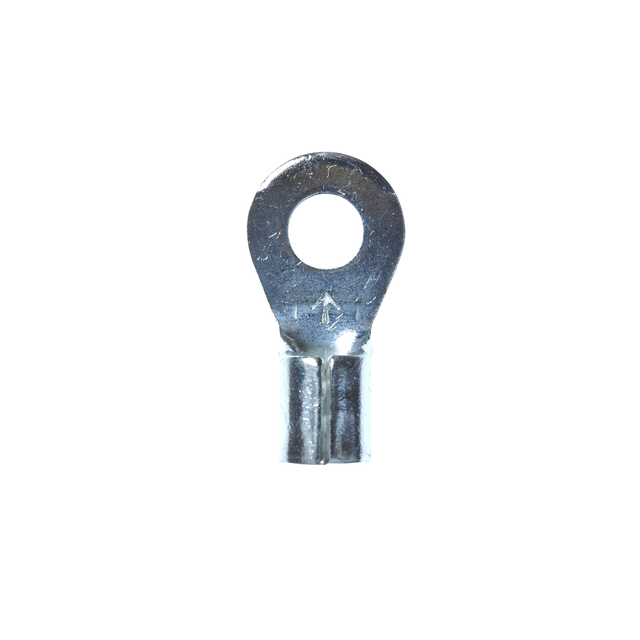

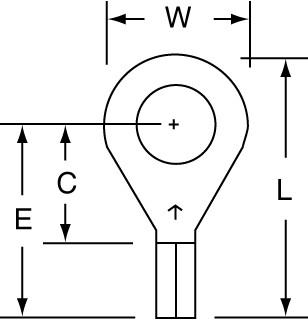

3M™ Non-Insulated Butted Seam Ring Tongue Terminal, 43779, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163483

Sold As: 1000-Pack
SKU: 7100163483
MPN: 7100163483
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279204
3M ID: 80601375910
MPN: 11-10
$73.37 ($0.07 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Terminal TypeRing
Maximum Conductor Size (Metric)0.823
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Connection TypeCrimp
Minimum Conductor Size (Imperial)22 AWG
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric)5.0
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNon-insulated
