3M Products & Supplies

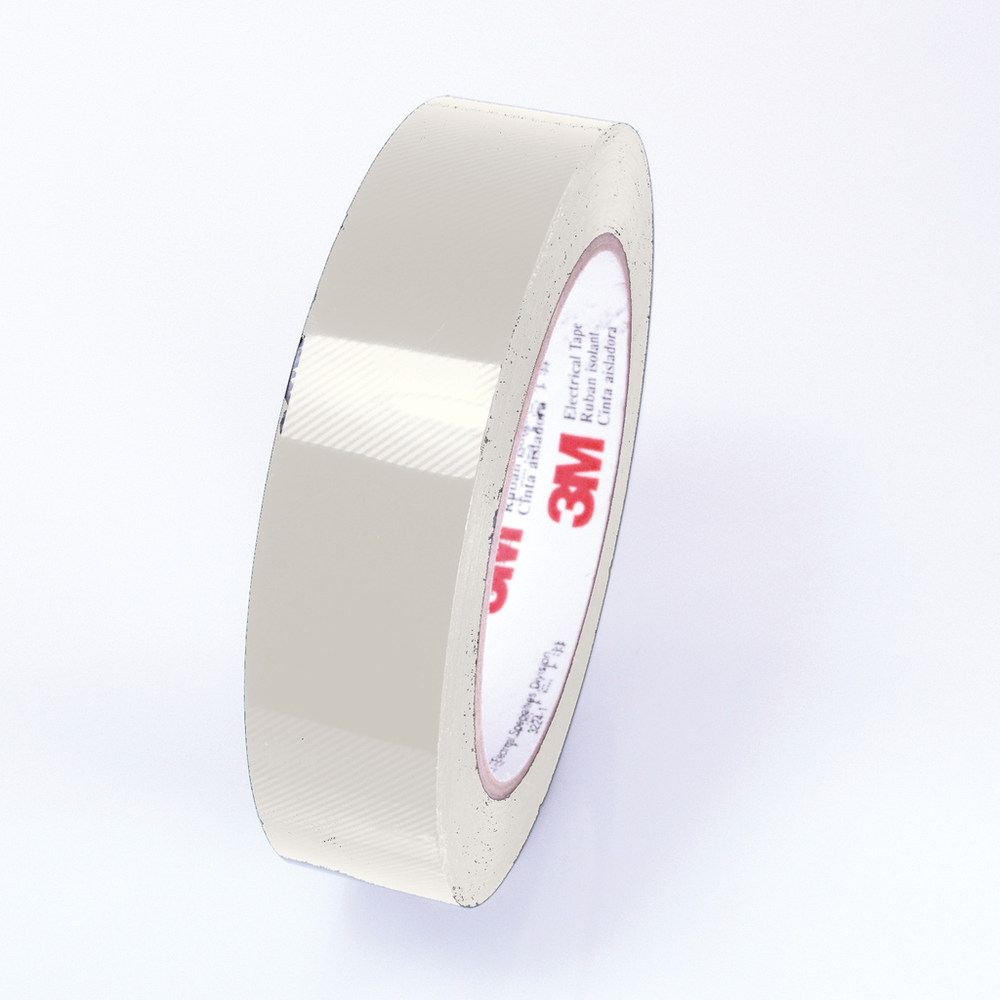

3M™ Polyester Film Electrical Tape 5, 1/4"x72yd, Clear, Acrylic Adhesive, 1/4 in x 72 yd (6,35mm x 66m), 144/Case - 7010045094

Sold As: 144-Pack
SKU: 7010045094
MPN: 7010045094
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138494759
3M ID: 80611240336
5 Digit UPC: 49475
$1,044.29 ($7.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 5 is a general purpose, electrical tape with a polyester film backing. This single coated tape is designed for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands higher-temperature conditions than tapes with acetate cloth backings
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
  • General purpose polyester tape with acrylic adhesive

Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.25
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)266.0
Maximum Operating Temperature (Celsius)130.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tape GradeProfessional
ApplicationInsulation
Product MarketsElectrical Equipment Manufacturing
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Overall Length (Imperial)72.0
Backing (Carrier) MaterialPolyester
Electrolytic Corrosion Factor1.0
Minimum Operating Temperature (Fahrenheit)32.0
Shelf Life UOMYear
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)66.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)6.35
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
