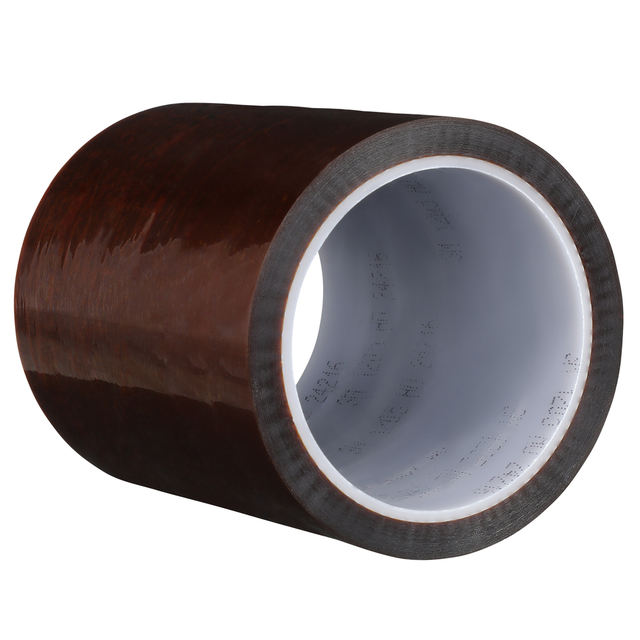

3M™ Polyimide Film Electrical Tape 1205, 12.5 in x 36 yds, Log Roll, 3 in plastic core, 1 Roll/Case - 7010320389

SKU: 7010320389
MPN: 7010320389
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138513443
3M ID: 80610899165
5 Digit UPC: 51344
$1,122.42 each
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyimide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • UL Listed and RoHS Compliant
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Highly conformable with a pressure-sensitive, acrylic adhesive

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break55%
Overall Width (Imperial)12.5
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)53.0
Adhesive MaterialAcrylic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)3.2
Product ColorAmber
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.081
Overall Width (Metric)317.5
Backing (Carrier) MaterialPolyimide Film
Tensile Strength (Metric) UOMN/cm
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit)311.0
Overall Length (Imperial)36.0
Product MarketsElectrical Equipment Manufacturing
ApplicationInsulation
Specifications MetRoHS 2011/65/EU
Dielectric Strength UOMV
Overall Width (Imperial) UOMin
Dielectric Strength7500.0
Shelf Life UOMYear
Maximum Operating Temperature (Celsius)155.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)33.0
