3M Products & Supplies

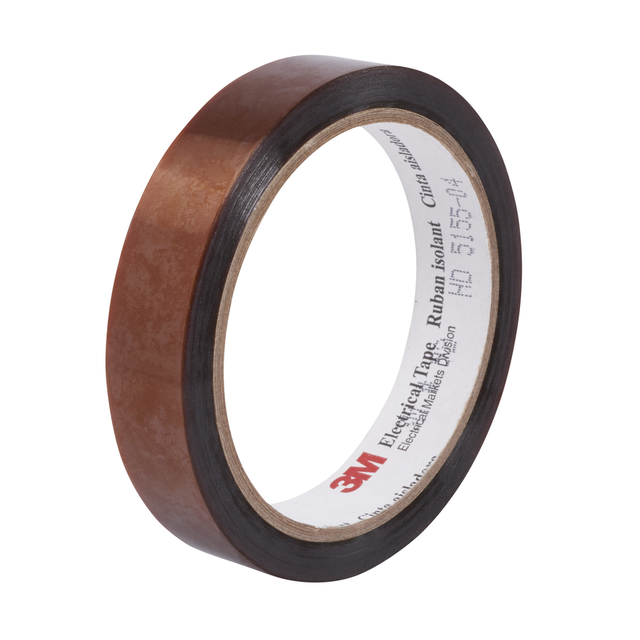

3M™ Polyimide Film Electrical Tape 92, 3/4 X 36 yds, Bulk, 3-in paper core, 12 Rolls/Case - 7010395797

Sold As: 12-Pack
SKU: 7010395797
MPN: 7010395797
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138514655
3M ID: 80100611377
5 Digit UPC: 51465
$757.87 ($63.16 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Designed for anchoring leads and terminal boards
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • UL Listed and RoHS Compliant
  • Flame-retardant and has polyamide backing
  • Withstands a temperature rating of 0°C to 180°C
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Metric)33.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Celsius)180.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Electrolytic Corrosion Factor1.0
Overall Length (Imperial) UOMyd
ApplicationInsulation
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Insulation Resistance1 x 10^6 megohms
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Imperial)2.75
Dielectric Strength UOMV
Product MarketsElectrical Equipment Manufacturing
Adhesive TypeSilicone
Elongation at Break40%
Overall Length (Imperial)36.0
Dielectric Strength7500.0
Tensile Strength (Metric)53.0
Product ColorAmber
Maximum Operating Temperature (Fahrenheit)356.0
Overall Width (Metric)19.05
Total Tape Thickness without Liner (Metric)0.07
Tensile Strength (Metric) UOMN/cm
Overall Width (Imperial) UOMin
Adhesive MaterialThermosetting Silicone
Shelf Life UOMYear
Backing (Carrier) MaterialPolyimide Film
