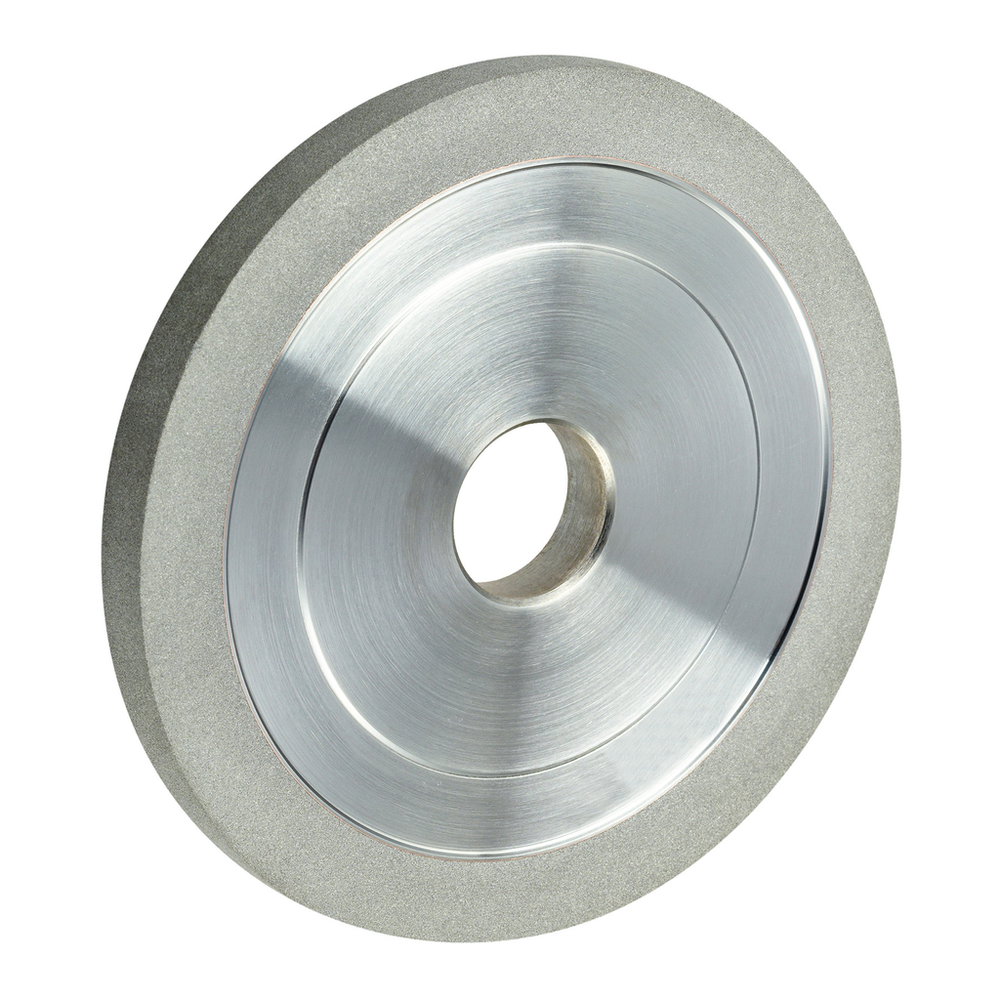

3M™ Polyimide Hybrid Bond Diamond Wheels and Tools, 11V9, 3-3/4X1-1/2X1-1/4, X=1/8 D280 686HN - MMMPBDW41195 - 7010495763

SKU: 7010495763
MPN: 7010495763
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060000397
3M ID: 65500400315
5 Digit UPC: 39
$496.44 each
Hurry up! Current stock:

Product Description

3M™ Diamond Wheel 686HN is a special hybrid bond diamond wheel used for grinding primary and secondary relief angles on round tools made of tungsten carbide. This highly engineered wheel offers the excellent form retention and long wheel life which is ideal for long production runs where tighter control on tolerances are required.

Features

  • Used for grinding on round tools
  • Ideal for long production runs and where tight tolerances are required
  • Diamond mineral for use when grinding Tungsten Carbide
  • Hybrid bond system offers excellent form retention and wheel stability
  • Arbor holes are made to customer specifications, so you get exactly the size you need

Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialDiamond
Overall Diameter (Metric)95.25
Bond TypePolyimide
Overall Thickness (Imperial)1.5
Product FormWheel
Center Hole Diameter (Metric) UOMmm
IndustriesCutting Tool Manufacturing, Precision Grinding & Finishing
Overall Thickness (Metric) UOMmm
Overall Diameter (Metric) UOMmm
Center Hole Diameter (Imperial)1.25
Center Hole Diameter (Metric)31.75
Center Hole Diameter (Imperial) UOMin
Overall Diameter (Imperial) UOMin
Overall Thickness (Imperial) UOMin
Overall Diameter (Imperial)3.75
Overall Thickness (Metric)38.1
