3M Products & Supplies

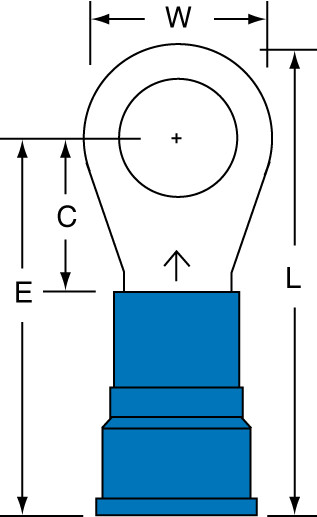

3M™ Ring Tongue, Nylon Insulated Brazed Seam 6 AWG, 94759, 15-38-WN - 7010397388

Sold As: 10-Pack
SKU: 7010397388
MPN: 7010397388
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947592
3M ID: 80611252596
MPN: 94759
$245.06 ($24.51 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNylon
Minimum Conductor Size (Imperial)6 AWG
UL File NumberE23438
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)6 AWG
Minimum Stud Diameter (Metric)9.525
Maximum Operating Temperature (Celsius)175.0
Barrel StyleBrazed
Country of OriginUnited States
Stud Size0.375 in
Terminal TypeRing
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)13.3 mm²
Maximum Conductor Size (Metric)13.3
Connection TypeCrimp
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
