3M Products & Supplies

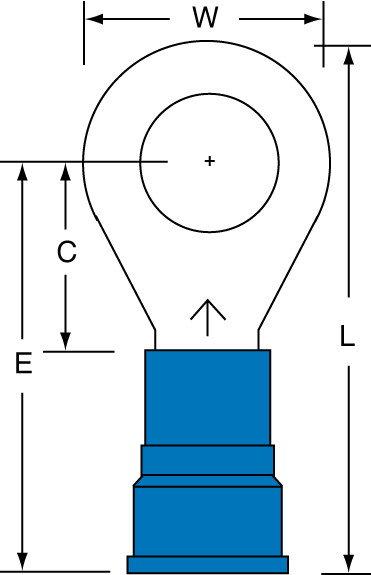

3M™ Ring Tongue, Nylon Insulated Brazed Seam 6 AWG, 94760, 15-500S-WN - 7010349247

Sold As: 10-Pack
SKU: 7010349247
MPN: 7010349247
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007947608
3M ID: 80611252604
MPN: 94760
$270.23 ($27.02 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Stud Diameter (Metric)12.7
Minimum Conductor Size (Metric)13.3 mm²
Insulation MaterialNylon
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size0.5 in
Connection TypeCrimp
Terminal StyleStandard
Terminal TypeRing
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)13.3
Minimum Conductor Size (Imperial)6 AWG
Ring TypeStandard
Barrel StyleBrazed
Country of OriginUnited States
Maximum Conductor Size (Imperial)6 AWG
Barrel Length (Imperial)0.25 Inch
