3M Products & Supplies

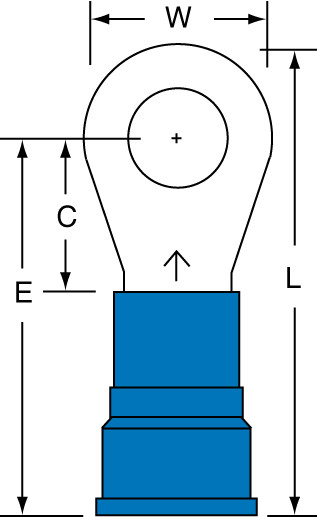

3M™ Ring Tongue, Nylon Insulated Brazed Seam 6 AWG, 94761, 15-56-WN - 7010293633

Sold As: 10-Pack
SKU: 7010293633
MPN: 7010293633
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947615
3M ID: 80611252612
MPN: 94761
$240.49 ($24.05 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Stud Size0.313 in
Terminal StyleStandard
UL File NumberE23438
Connection TypeCrimp
Country of OriginUnited States
Maximum Conductor Size (Imperial)6 AWG
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)13.3 mm²
Ring TypeStandard
Minimum Stud Diameter (Metric)7.95
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleBrazed
Terminal TypeRing
Minimum Conductor Size (Imperial)6 AWG
Maximum Conductor Size (Metric)13.3
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNylon
