3M Products & Supplies

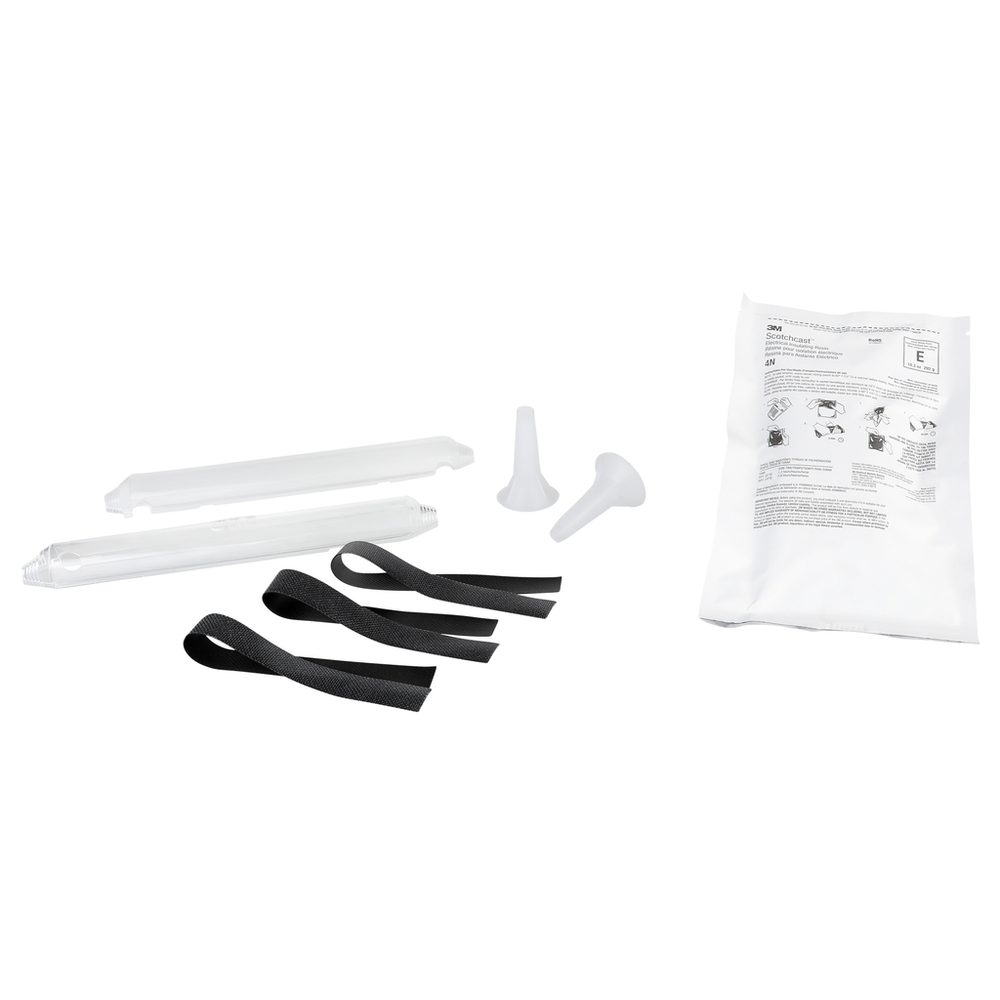

3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1 per box, 10/Case - 7100123110

Sold As: 10-Pack
SKU: 7100123110
MPN: 7100123110
For an accurate lead time please contact us
UPC: 00051128613429
3M ID: 80611616725
5 Digit UPC: 61342
$951.39 ($95.14 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Inline Resin Power Cable Splice Kits 82-AN Series is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

Features

  • Tough and oil resistant
  • Excellent multi-purpose moisture sealing resin
  • Rated for 5 kV and 1 kV cables
  • Splices non-shielded submersible cables

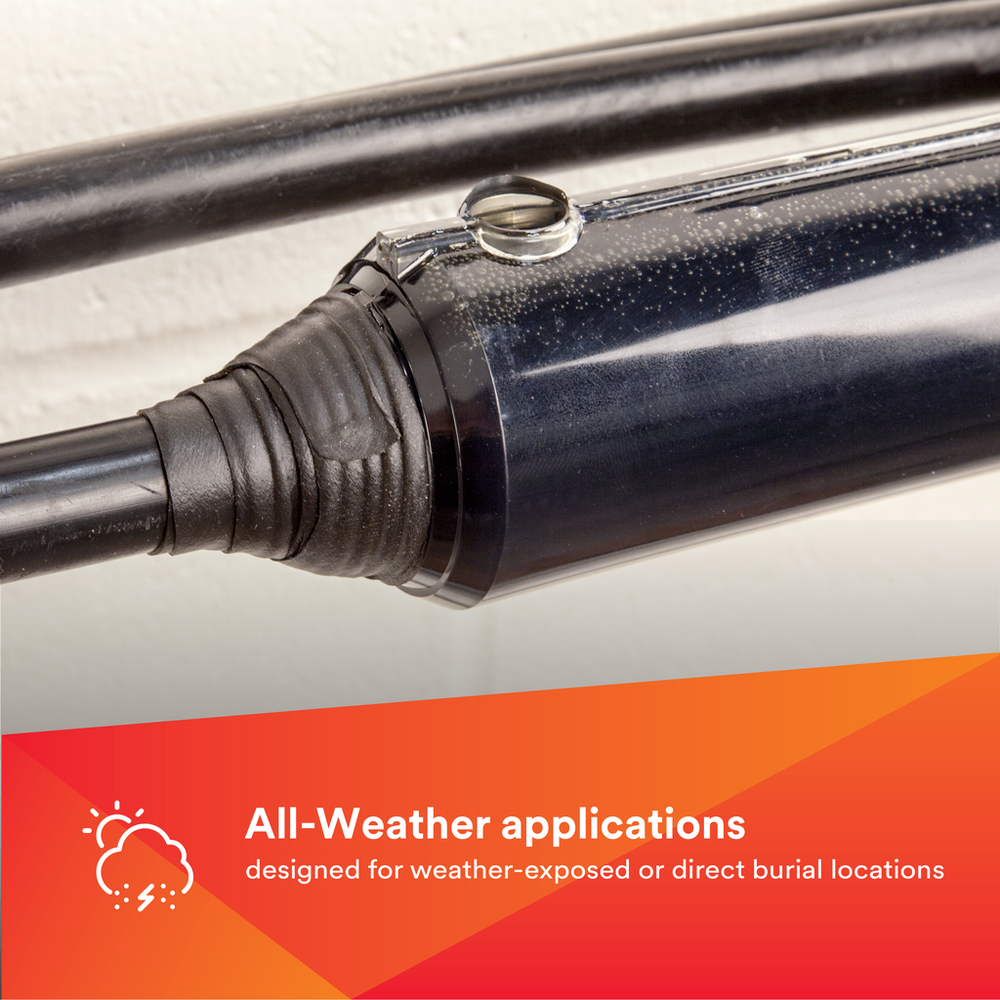

  • Designed for weather-exposed or direct burial locations

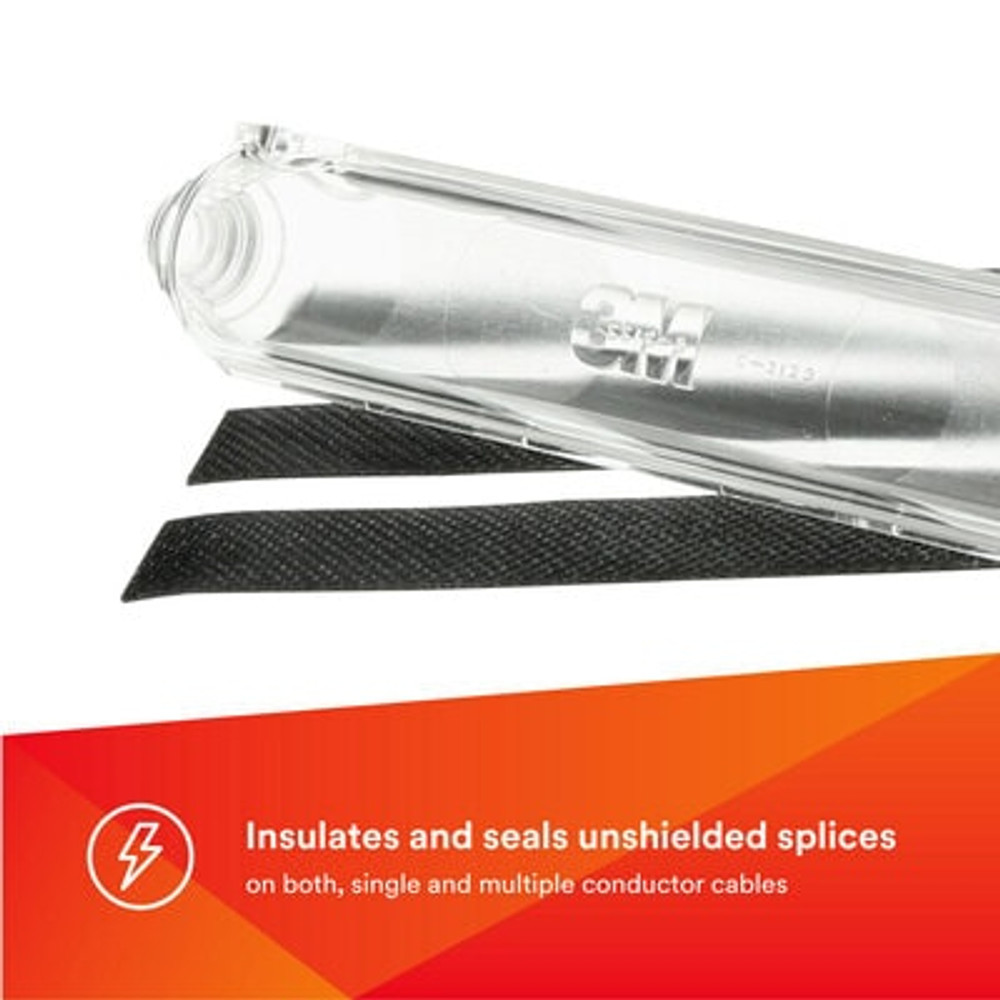

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Conductor AmountMultiple
Dielectric Strength500.0
Maximum Operating Voltage5 Kilovolt
MaterialEpoxy
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Cable Outside Diameter1.00 in
ApplicationSealing, electrical insulation and mechanical protection
Minimum Conductor Size (Metric)35 mm²
Product ColorBlack
Product TypeResin Splice
Maximum Cable Outside Diameter (Metric)25.4 mm
Maximum Conductor Size (Metric)95 mm²
Minimum Conductor Size (Imperial)2 AWG
Minimum Insulation Outer Diameter (Metric)15.875
Minimum Insulation Outer Diameter (Imperial)0.625
Minimum Insulation Outer Diameter (Metric) UOMmm
Splice TypeInline
Maximum Insulation Outer Diameter (Metric)25.4
Product Series82-A Series
Voltage5 kV
Insulation Outside Diameter Range (Metric)16 - 25 mm
Insulation Outside Diameter Range0.625 - 1.00 Inch
Cable ShieldingMultiple Conductor Portable Cable
Maximum Insulation Outer Diameter (Imperial) UOMin
Dielectric Strength UOMmV
Insulation O.D. Range0.625 - 1.00 Inch
Maximum Conductor Size (Imperial)3/0 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Insulation Outer Diameter (Imperial) UOMin
Product TechnologyResin
Voltage ApplicationMedium Voltage
Maximum Insulation Outer Diameter (Imperial)1.0
