3M Products & Supplies

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85-14, (2/0 AWG stranded, 2/0 AWG stranded, 10 /Case - 7000132288

Sold As: 10-Pack
SKU: 7000132288
MPN: 7000132288
For an accurate lead time please contact us
UPC: 00054007118480
3M ID: 80610077127
5 Digit UPC: 11848
$708.50 ($70.85 / Count)
Hurry up! Current stock:

Product Description

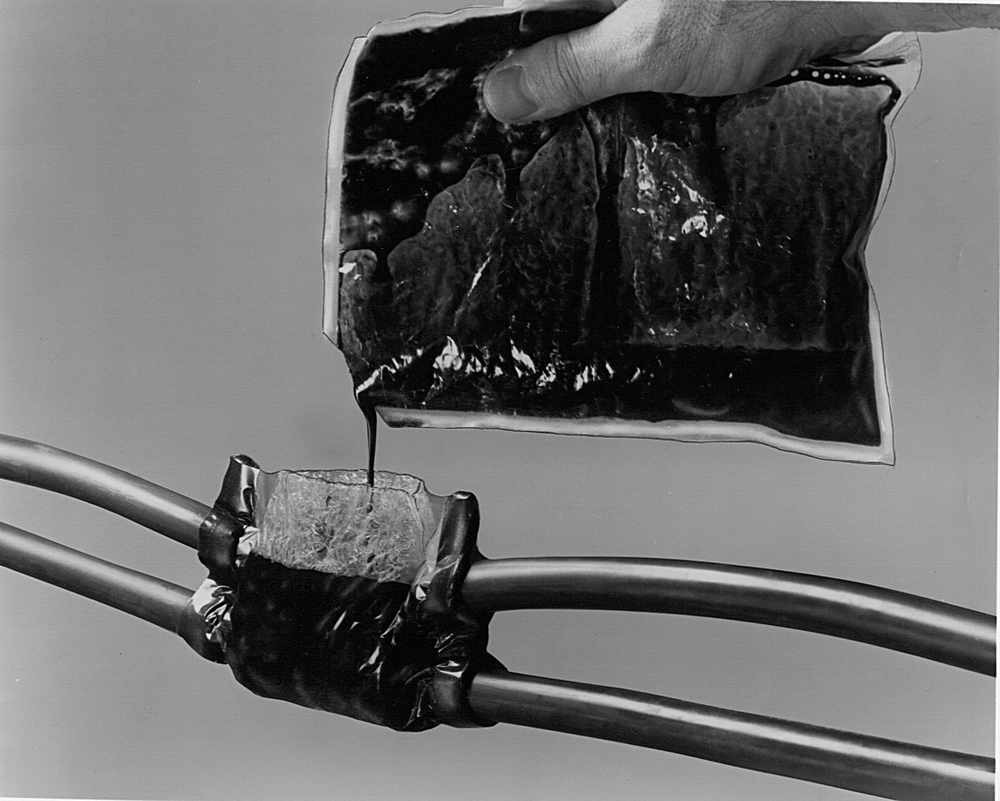

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts.

Features

  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • Can be installed in horizontal or vertical positions
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life720
Country of OriginUnited States
Voltage1 kV
Maximum Conductor Size (Imperial)4/0 AWG
Conductor AmountMultiple
Cable ShieldingNon-shielded
MaterialEpoxy
Product TypeResin Splice
Maximum Cable Outside Diameter (Metric)22.2 mm (run & tap)
Product TechnologyResin
Maximum Connector Size (height + width)3-1/4" (82,6 mm)
Dielectric Strength UOMmV
Dielectric Strength500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Cable Outside Diameter7/8 Inch (run & tap)
Splice TypeResin
Maximum Conductor Size (Metric)120 mm²
Cable TypePower Cable
