3M Products & Supplies

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85-10, (10, 8 AWG stranded, 8 AWG stranded, 10 /Case - 7100009589

Sold As: 10-Pack
SKU: 7100009589
MPN: 7100009589
For an accurate lead time please contact us
UPC: 00054007118466
3M ID: 80610077101
5 Digit UPC: 11846
$460.00 ($46.00 / Count)
Hurry up! Current stock:

Product Description

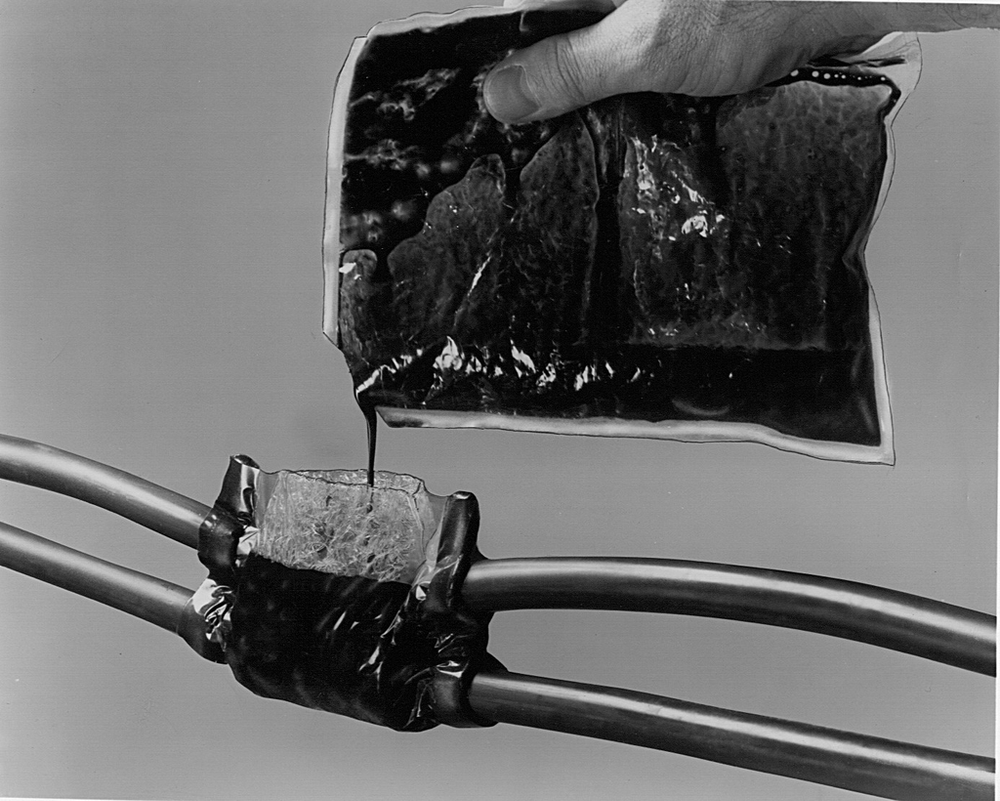

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts.

Features

  • RoHS 2011/65/EU Compliant
  • Can be installed in horizontal or vertical positions
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations
  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • Includes pressure-sensitive adhesive film sealing strip
Spec Sheet



Downloads

Specifications

Shelf Life720
Country of OriginUnited States
Minimum Conductor Size (Metric)10 mm²
Maximum Conductor Size (Metric)25 mm²
Maximum Cable Outside Diameter (Metric)11.1 mm (run & tap)
Cable TypePower Cable
Minimum Conductor Size (Imperial)8 AWG
Dielectric Strength500.0
Maximum Conductor Size (Imperial)4 AWG
Product TechnologyResin
Dielectric Strength UOMmV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialEpoxy
Splice TypeResin
Voltage1 kV
Maximum Connector Size (height + width)1-3/4" (44,5 mm)
Conductor AmountMultiple
Maximum Cable Outside Diameter7/16 Inch (run & tap)
Product TypeResin Splice
Cable ShieldingNon-shielded
