3M Products & Supplies

3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-AN, 10-2 AWG, 1 per box, 10/Case - 7100123072

Sold As: 10-Pack
SKU: 7100123072
MPN: 7100123072
For an accurate lead time please contact us
UPC: 00051128613382
3M ID: 80611616683
5 Digit UPC: 61338
$694.79 ($69.48 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Inline Resin Power Cable Splice Kits 82-AN Series is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

Features

  • Excellent multi-purpose moisture sealing resin
  • Tough and oil resistant
  • Rated for 5 kV and 1 kV cables

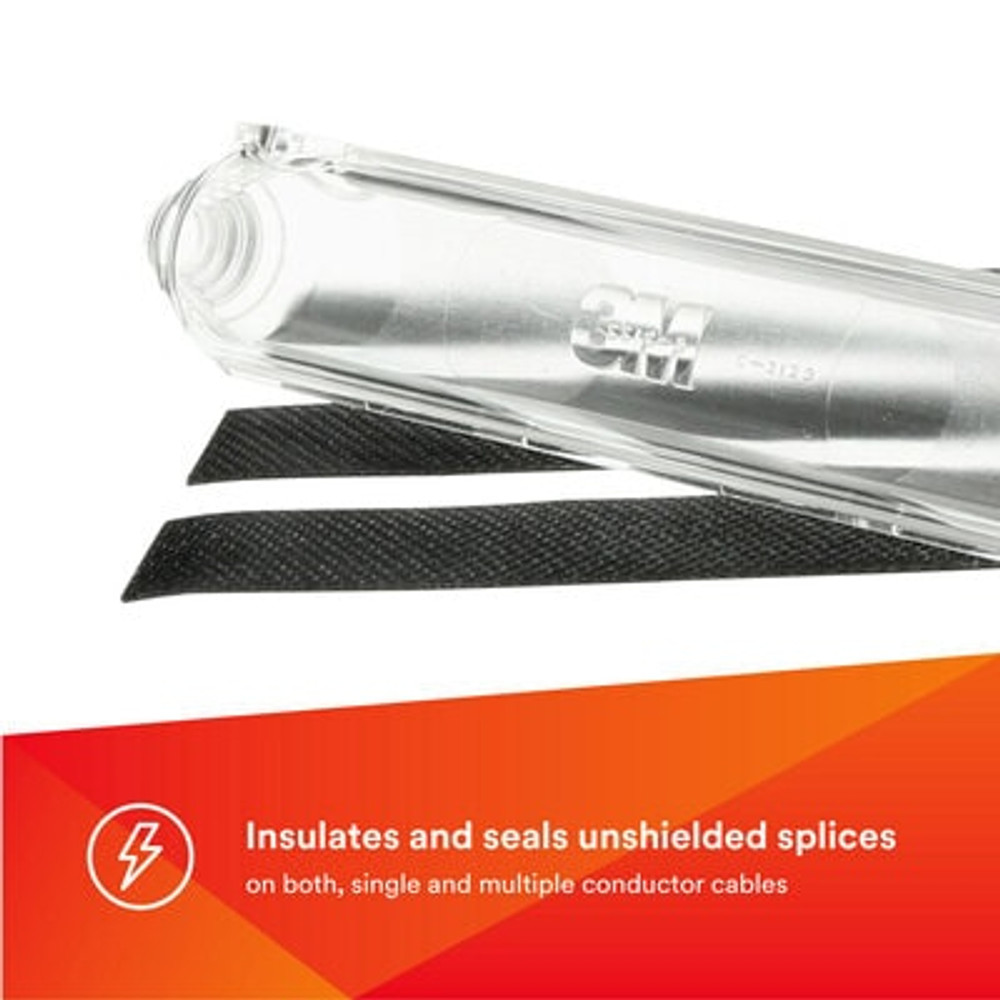

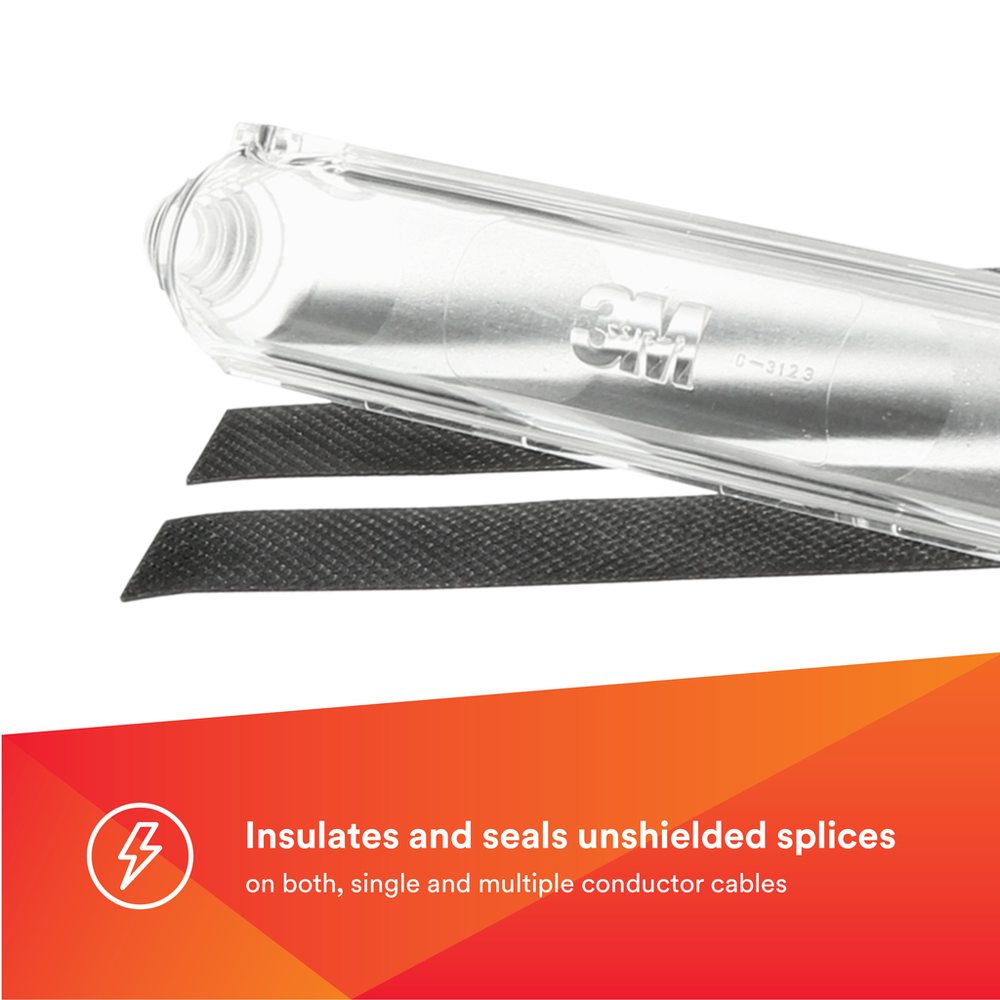

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables

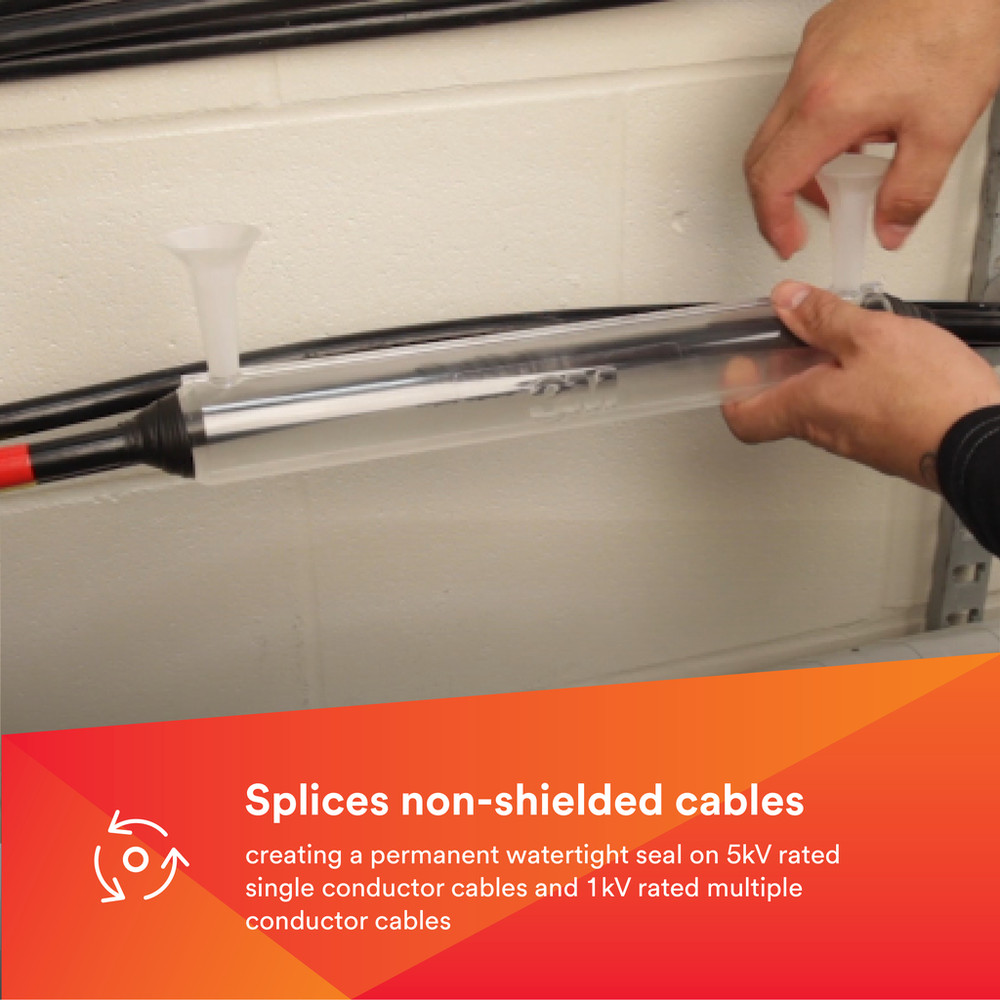

  • Splices non-shielded submersible cables
  • Designed for weather-exposed or direct burial locations
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation Outside Diameter Range0.406 - 0.750 Inch
Maximum Conductor Size (Imperial)2 AWG
Minimum Insulation Outer Diameter (Imperial)0.406
Product ColorBlack
Minimum Conductor Size (Imperial)10 AWG
Dielectric Strength500.0
Maximum Insulation Outer Diameter (Imperial)0.75
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationSealing, electrical insulation and mechanical protection
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Insulation Outer Diameter (Imperial) UOMin
Product TechnologyResin
Insulation O.D. Range0.406 - 0.750 Inch
Maximum Cable Outside Diameter (Metric)15.2 mm
Conductor AmountMultiple
Product TypeResin Splice
Maximum Cable Outside Diameter0.60 in
Splice TypeInline
Maximum Conductor Size (Metric)35 mm²
Dielectric Strength UOMmV
Product Series82-A Series
Voltage ApplicationMedium Voltage
Minimum Conductor Size (Metric)35 mm²
Voltage5 kV
Cable ShieldingSingle Conductor Portable Cable
MaterialEpoxy
Maximum Operating Voltage5 Kilovolt
Insulation Outside Diameter Range (Metric)10 - 19 mm
