3M Products & Supplies

3M™ Scotchcast™ Inline Resin Splice kit 82-A3N, 1-5 kV, Non-Shielded, 10/Case - 7100117646

Sold As: 10-Pack
SKU: 7100117646
MPN: 7100117646
For an accurate lead time please contact us
UPC: 00051128613436
3M ID: 80611616733
5 Digit UPC: 61343
$1,616.74 ($161.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Inline Resin Power Cable Splice Kits 82-AN Series is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

Features

  • Splices non-shielded submersible cables
  • Excellent multi-purpose moisture sealing resin
  • Tough and oil resistant

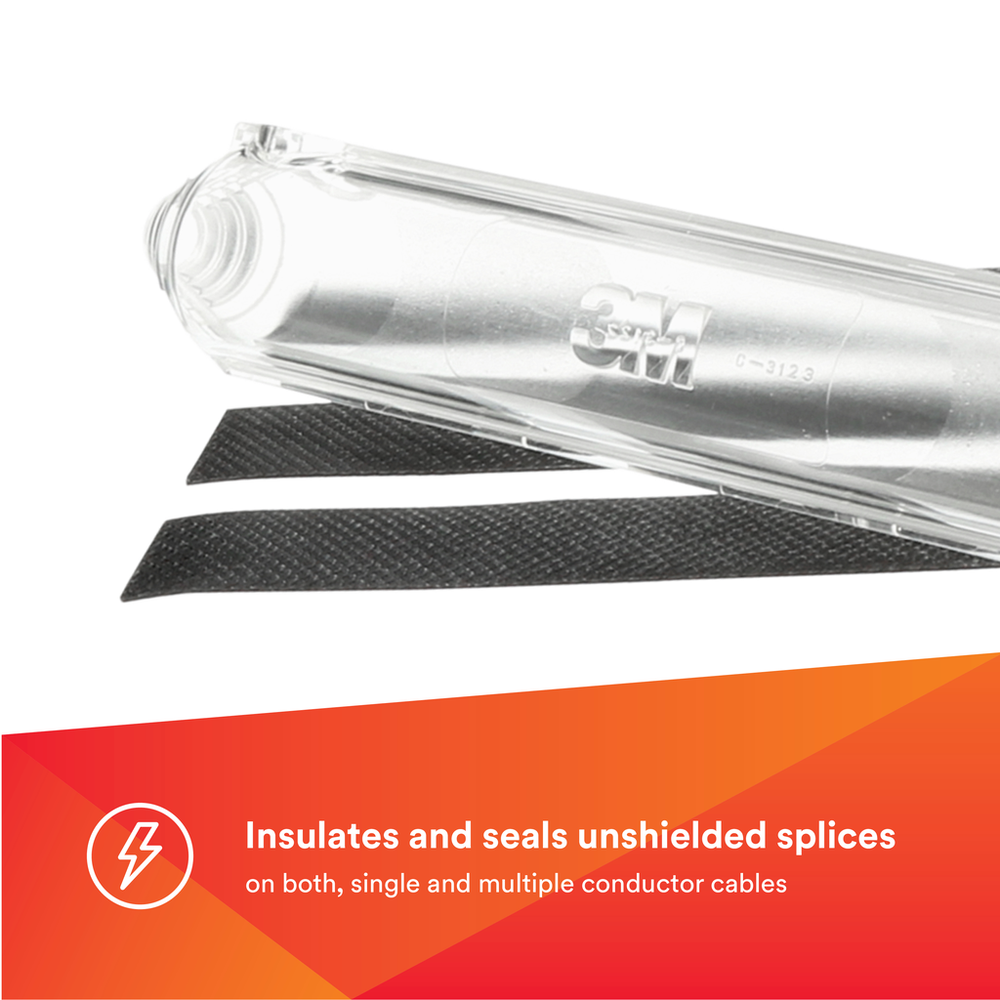

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
  • Rated for 5 kV and 1 kV cables

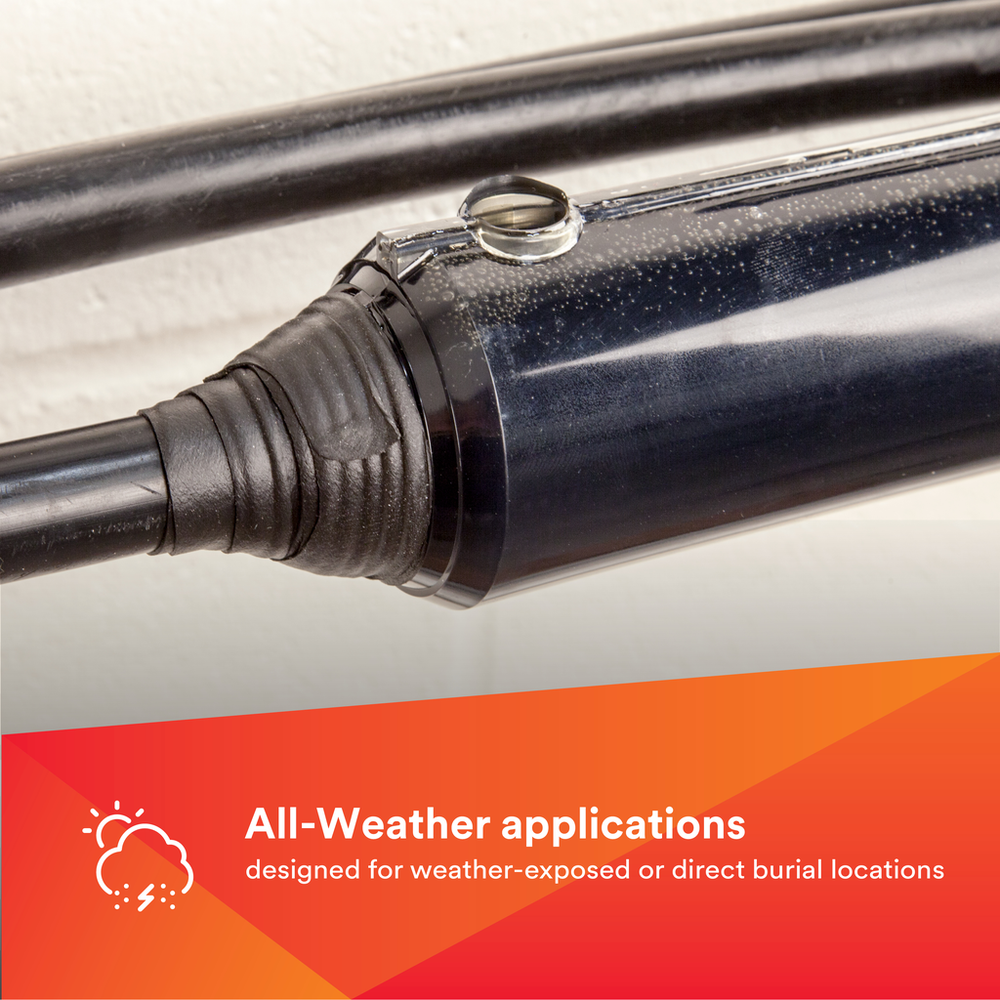

  • Designed for weather-exposed or direct burial locations
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Insulation Outside Diameter Range (Metric)25 - 40 mm
Conductor AmountMultiple
Voltage5 kV
Voltage ApplicationMedium Voltage
Maximum Cable Outside Diameter1.56 in
Minimum Insulation Outer Diameter (Imperial)1.0
Product ColorBlack
Minimum Conductor Size (Metric)185 mm²
Minimum Conductor Size (Imperial)3/0 AWG
Insulation O.D. Range1.00 - 1.563 Inch
Dielectric Strength UOMmV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)1.5625
Maximum Conductor Size (Metric)185 mm²
Cable ShieldingSingle Conductor Portable Cable
Dielectric Strength500.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)3/0 AWG
Minimum Insulation Outer Diameter (Metric) UOMmm
Minimum Insulation Outer Diameter (Metric)25.4
Product TypeResin Splice
Maximum Operating Voltage5 Kilovolt
Product TechnologyResin
MaterialEpoxy
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Cable Outside Diameter (Metric)39.7 mm
Product Series82-A Series
Insulation Outside Diameter Range1.00 - 1.563 Inch
Splice TypeInline
Maximum Insulation Outer Diameter (Metric)39.688
ApplicationSealing, electrical insulation and mechanical protection
