3M Products & Supplies

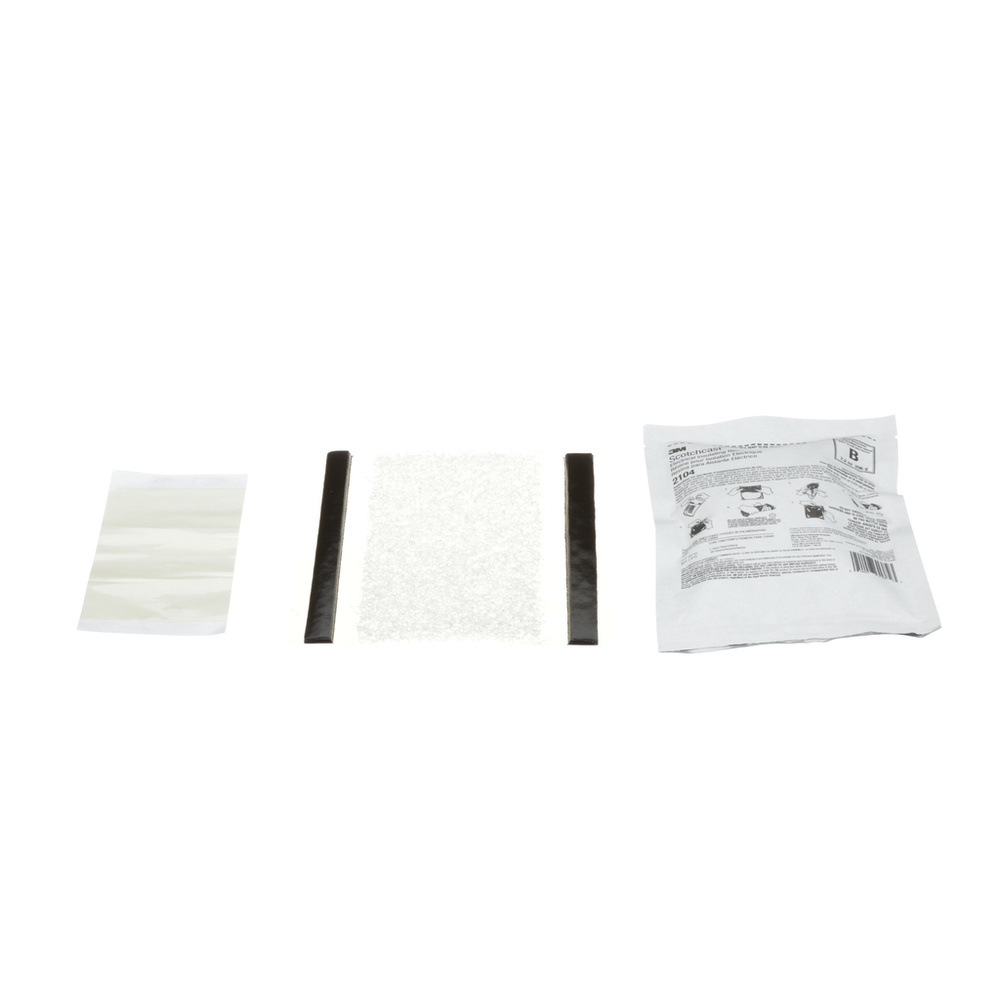

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85-12, 0 - 600 V, Non-Shielded, 10 /Case - 7000132287

Sold As: 10-Pack
SKU: 7000132287
MPN: 7000132287
For an accurate lead time please contact us
UPC: 00054007118473
3M ID: 80610077119
5 Digit UPC: 11847
$662.95 ($66.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts.

Features

  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • Includes pressure-sensitive adhesive film sealing strip
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations
  • Can be installed in horizontal or vertical positions
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life720
Country of OriginUnited States
Dielectric Strength500.0
Maximum Conductor Size (Imperial)2/0 AWG
Maximum Cable Outside Diameter3/4 Inch(run & tap)
Conductor AmountMultiple
Product TypeResin Splice
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dielectric Strength UOMmV
Maximum Conductor Size (Metric)70 mm²
MaterialEpoxy
Product TechnologyResin
Cable TypePower Cable
Maximum Cable Outside Diameter (Metric)19.1 mm (run & tap)
Cable ShieldingNon-shielded
Maximum Connector Size (height + width)2-3/4" (69,9 mm)
Splice TypeResin
Voltage1 kV
