3M Products & Supplies

3M™ Scotchcast™ Multi-Mold Resin Splice kit 85-14CPN, 0 - 600 V, Non-Shielded, 10 /Case - 7100123074

Sold As: 10-Pack
SKU: 7100123074
MPN: 7100123074
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128613450
3M ID: 80611616758
5 Digit UPC: 61345
$1,078.37 ($107.84 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts.

Features

  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations

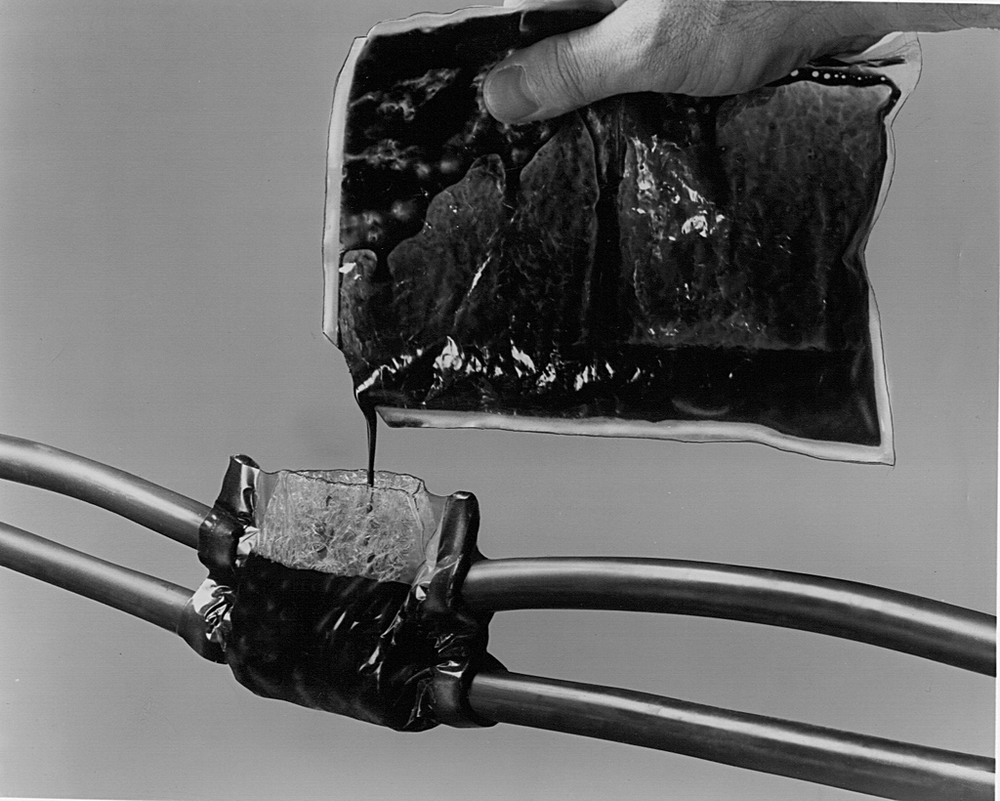

  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • Can be installed in horizontal or vertical positions
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1095
Country of OriginUnited States
Dielectric Strength UOMmV
Voltage1 kV
Product TypeResin Splice
Dielectric Strength500.0
Minimum Conductor Size (Imperial)2/0 AWG
Minimum Conductor Size (Metric)70 mm²
Maximum Cable Outside Diameter (Metric)22.2 mm (run & tap)
Product Series85 Series
Maximum Conductor Size (Imperial)4/0 AWG
Maximum Conductor Size (Metric)120 mm²
MaterialEpoxy
Cable ShieldingNon-shielded
Cable TypePower Cable
Product TechnologyResin
Product ColorBlack
Maximum Cable Outside Diameter7/8 Inch (run & tap)
Maximum Connector Size (height + width)3-1/4" (82,6 mm)
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeResin
Conductor AmountMultiple
