3M Products & Supplies

3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85-16, 0 - 600 V, Non-Shielded, 10 /Case - 7100059057

Sold As: 10-Pack
SKU: 7100059057
MPN: 7100059057
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007024033
3M ID: 80610069447
5 Digit UPC: 2403
$1,200.04 ($120.00 / Count)
Hurry up! Current stock:

Product Description

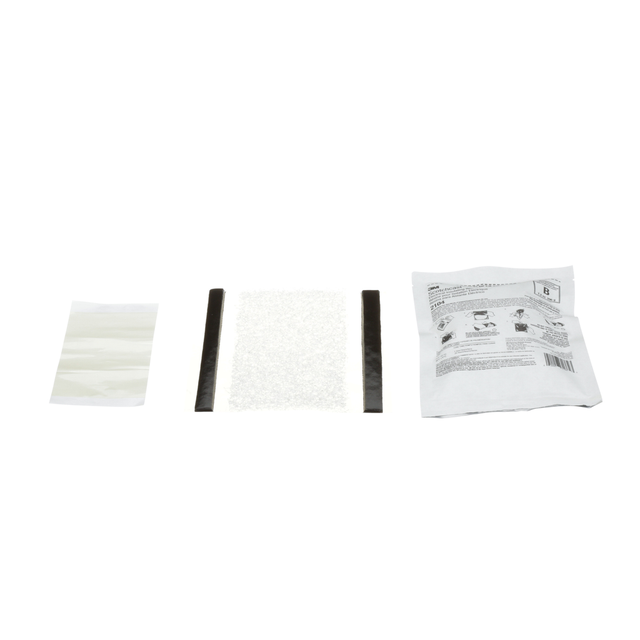

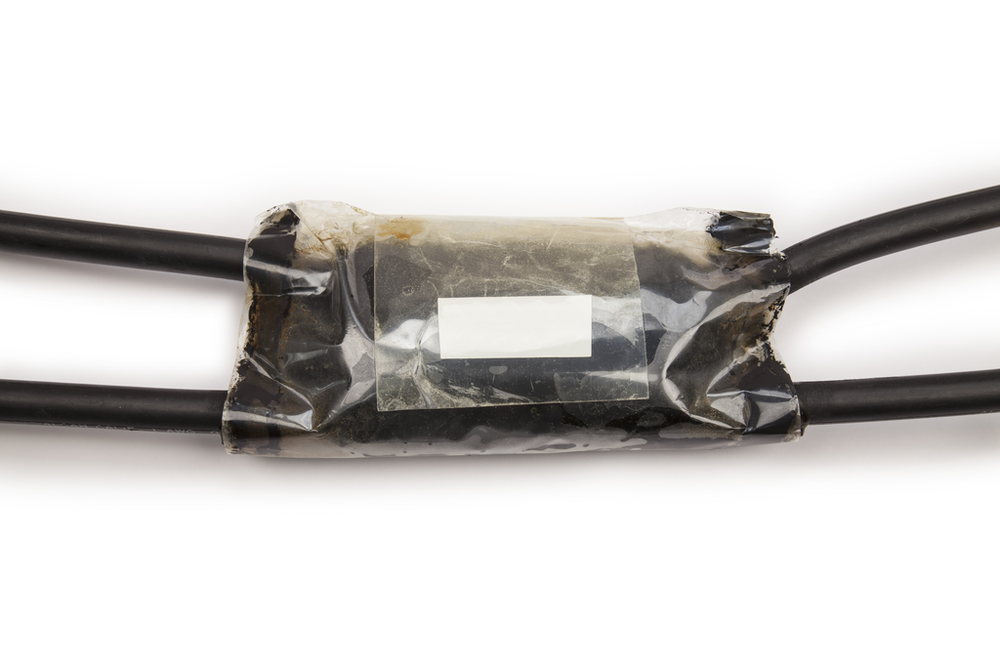

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts.

Features

  • Can be installed in horizontal or vertical positions
  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Connector Size (height + width)3-3/4 Inch (Split Bolt), 6 Inch (H- or C-Tap Compression)
Product TypeResin Splice
Conductor AmountMultiple
Cable ShieldingNon-shielded
Dielectric Strength UOMmV
Product TechnologyResin
MaterialEpoxy
Shelf Life720
Dielectric Strength500.0
Maximum Conductor Size (Metric)240 mm²
Voltage1 kV
Maximum Cable Outside Diameter (Metric)22.2 mm (run & tap) 38.1 mm (inline)
Maximum Cable Outside Diameter7/8 Inch (run & tap), 1.50 Inch (inline)
Maximum Conductor Size (Imperial)500 kcmil
Cable TypePower Cable
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeResin
