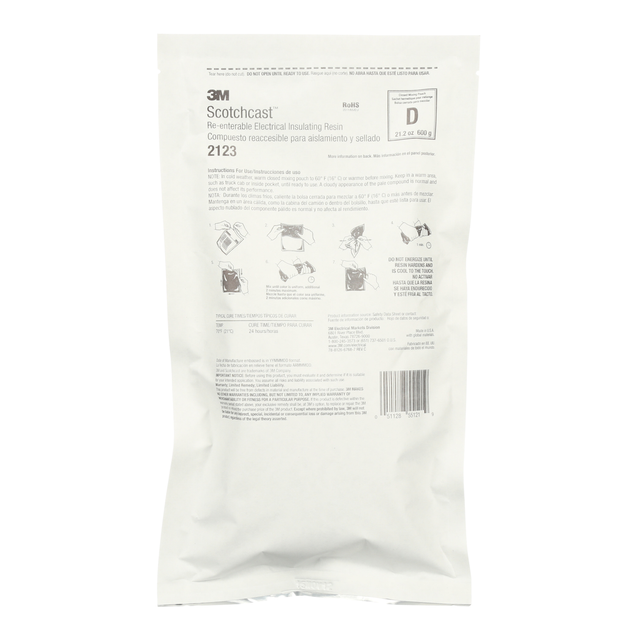

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123D (2.9 oz) Size A, 10/Case - 7100179825

Sold As: 10-Pack
SKU: 7100179825
MPN: 7100179825
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060289310
3M ID: 80000215204
5 Digit UPC: 28931
$586.61 ($58.66 / Count)
Hurry up! Current stock:

Product Description

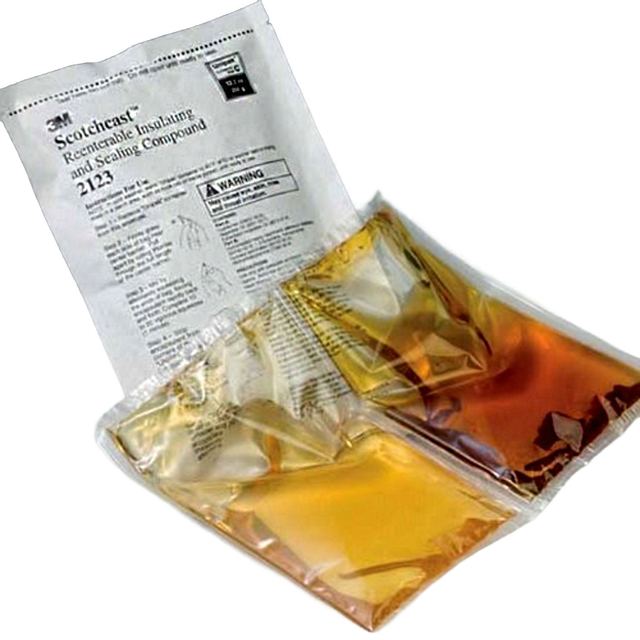

3M™ Scotchcast™ Re-Enterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.

Features

  • Typical hardness (ASTM D2240) - 0 Shore A
  • Useful for sealing and electrical insulation in potting applications
  • High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
  • Elongates 300% longer than its original size for easy insulation or wrapping
  • Has 62 minute gel time at 23 °C (73 °F)
  • Withstands a max temperature in continuous use of 90 °C (194 °F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Hardness0 Shore A
Product TypeResin
Minimum Operating Temperature (Celsius) UOMDegree
FlexibilitySoft
Applicable by Electrostatic Fluid BedNo
Minimum Operating Temperature (Celsius)-20.0
Dielectric Strength9.5
Weight (Imperial)2.9
Storage Time in Months24.0
Weight (Imperial) UOMoz
Net Weight (Metric) UOMg
Container Size (Imperial)2.9 oz
Maximum Operating Temperature (Fahrenheit) UOMDegree
Cure MethodRoom
ModelCast Resin
Units per Case10.0
Applicable by Venturi SprayNo
Maximum Operating Temperature90ºC (194ºF) continuous; overload rating 130ºC (266ºF)
Flame RetardantNo
Re-enterableYes
Maximum Operating Temperature (Fahrenheit)190.0
For connection of paper - with plasticinsulated cablesNo
Product Series2123
Voltage ApplicationLow Voltage
Applicable by Electrostatic SprayNo
Lug/Stem Connector Included in KitNo
Net Weight (Metric)82.0
Maximum Operating Temperature (Celsius)90.0
Applicable by Fluid Bed DipNo
Indoor/OutdoorBoth
Voltage1 kV
Resin Cure70°F (21°C), 24 hours
ApplicationSealing, electrical insulation and mechanical protection
MaterialPolybutadiene
Product ColorAmber
Flammability RatingNot Self Extinguishing
Dielectric Strength (V/mil)240 V/mil
Resin MatrixUnfilled
Net Weight (Imperial)2.9
Temperature RatingClass B
Product MarketsElectrical Construction
Maximum Operating Temperature (Celsius) UOMDegree
Cable Typemulti core, non shielded, polymeric insulated cable
Elongation UOM%
Mining Sector ApprovalNo
Dielectric Strength UOMkV/mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Net Weight (Imperial) UOMoz
Voltage Rating0.6/1 kV
