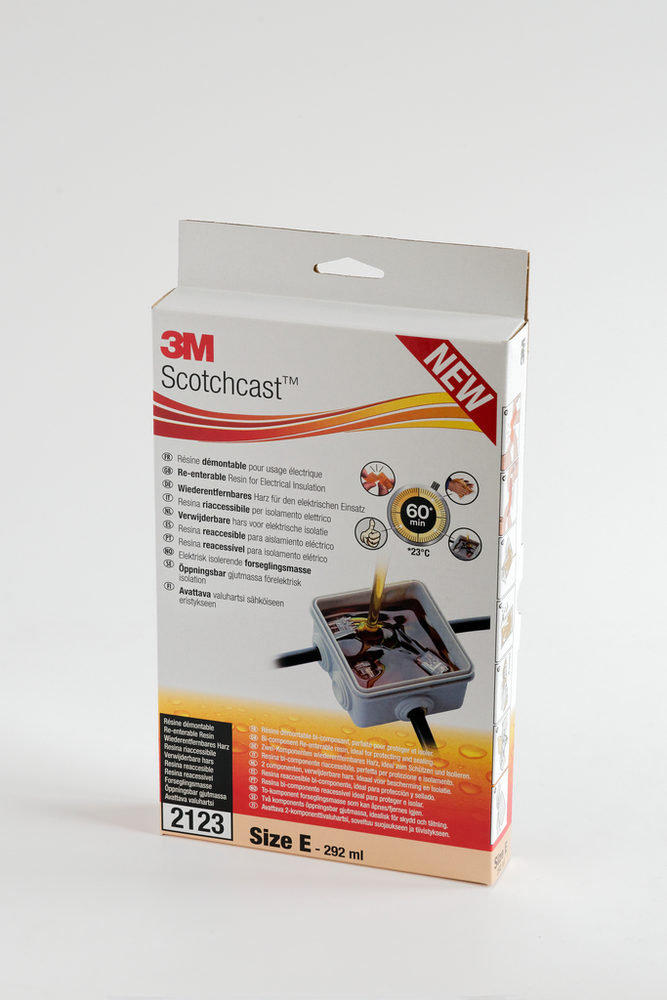

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123E (9.4 oz) Size E, 10/Case - 7100179833

Sold As: 10-Pack
SKU: 7100179833
MPN: 7100179833
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060289327
3M ID: 80000215212
5 Digit UPC: 28932
$839.83 ($83.98 / Count)
Hurry up! Current stock:

Product Description

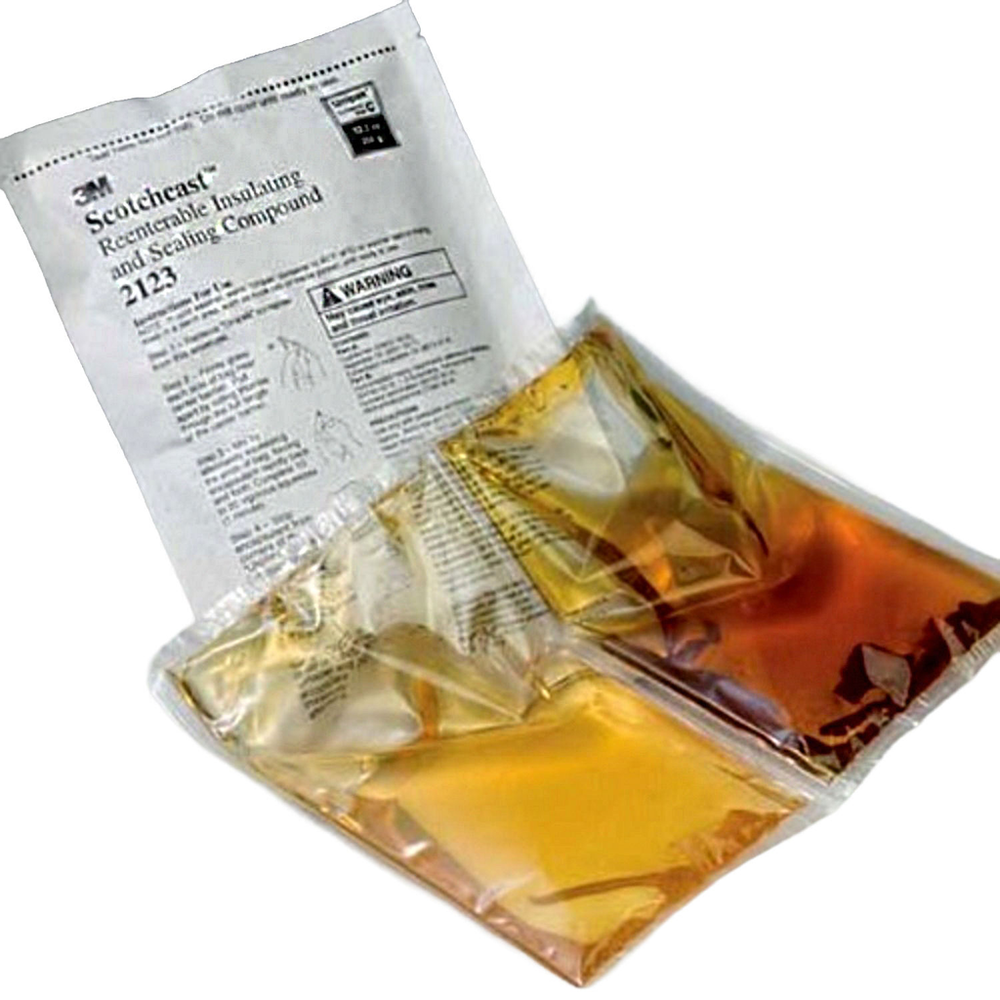

3M™ Scotchcast™ Re-Enterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.

Features

  • Withstands a max temperature in continuous use of 90 °C (194 °F)
  • High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
  • Useful for sealing and electrical insulation in potting applications
  • Elongates 300% longer than its original size for easy insulation or wrapping
  • Typical hardness (ASTM D2240) - 0 Shore A
  • Has 62 minute gel time at 23 °C (73 °F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Applicable by Fluid Bed DipNo
Storage Time in Months24.0
Voltage Rating0.6/1 kV
Cure MethodRoom
MaterialPolybutadiene
ModelCast Resin
Flammability RatingNot Self Extinguishing
Net Weight (Imperial) UOMoz
Elongation UOM%
Voltage1 kV
Weight (Imperial)21.2
Product Series2123
Dielectric Strength UOMkV/mm
Maximum Operating Temperature (Celsius)90.0
Dielectric Strength9.5
Applicable by Venturi SprayNo
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Mining Sector ApprovalNo
Product ColorAmber
ApplicationSealing, electrical insulation and mechanical protection
Re-enterableYes
Units per Case10.0
Net Weight (Metric) UOMg
Resin MatrixUnfilled
For connection of paper - with plasticinsulated cablesNo
Minimum Operating Temperature (Celsius)-20.0
Product TypeResin
Voltage ApplicationLow Voltage
Hardness0 Shore A
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature90ºC (194ºF) continuous; overload rating 130ºC (266ºF)
Applicable by Electrostatic Fluid BedNo
Maximum Operating Temperature (Fahrenheit)190.0
Applicable by Electrostatic SprayNo
Net Weight (Imperial)21.2
Temperature RatingClass B
Resin Cure70°F (21°C), 24 hours
Dielectric Strength (V/mil)240 V/mil
FlexibilitySoft
Weight (Imperial) UOMoz
Flame RetardantNo
Net Weight (Metric)600.0
Lug/Stem Connector Included in KitNo
Cable Typemulti core, non shielded, polymeric insulated cable
Product MarketsElectrical Construction
Indoor/OutdoorBoth
Container Size (Imperial)9.4 oz
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
