3M Products & Supplies

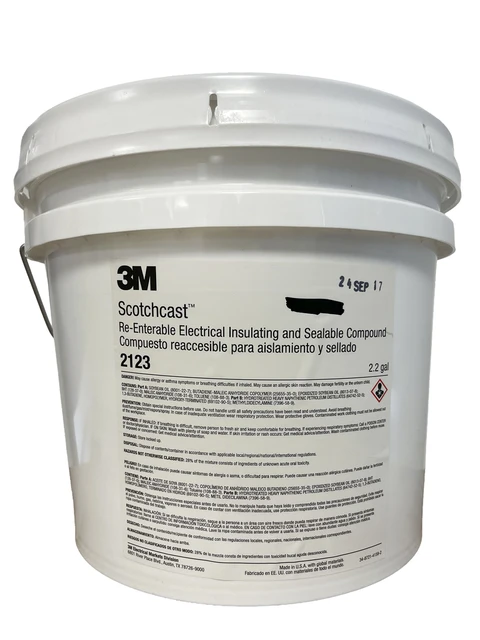

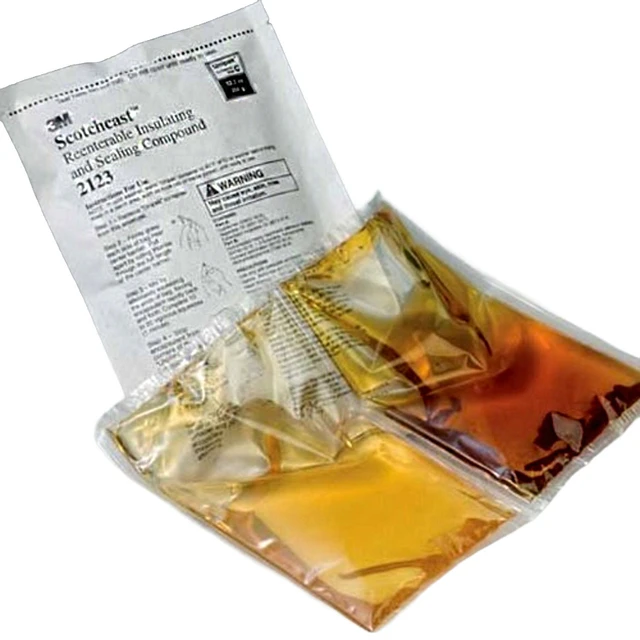

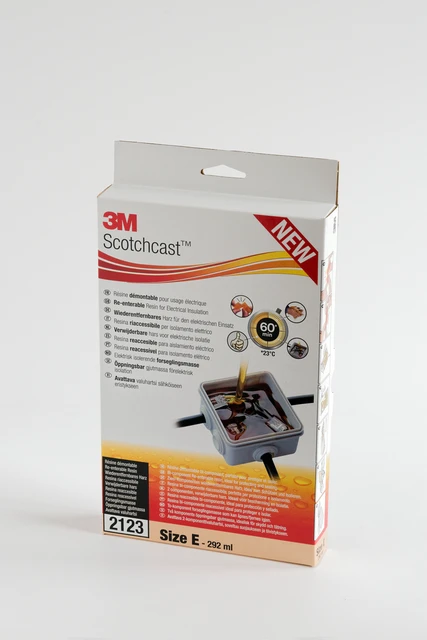

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123D (21.2 oz), 10 EA/Case - 7000006197

Sold As: 10-Pack
SKU: 7000006197
MPN: 7000006197
For an accurate lead time please contact us
UPC: 00051128551219
3M ID: 80611264427
5 Digit UPC: 55121
$1,244.99 ($124.50 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Re-Enterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.

Features

  • Elongates 300% longer than its original size for easy insulation or wrapping
  • High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
  • Useful for sealing and electrical insulation in potting applications
  • Has 62 minute gel time at 23 °C (73 °F)
  • Typical hardness (ASTM D2240) - 0 Shore A
  • Withstands a max temperature in continuous use of 90 °C (194 °F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Dielectric Strength9.5
Product MarketsElectrical Construction
Product TypeResin
Re-enterableYes
FlexibilitySoft
Dielectric Strength (V/mil)240 V/mil
Maximum Operating Temperature90ºC (194ºF) continuous; overload rating 130ºC (266ºF)
Net Weight (Imperial) UOMoz
ApplicationSealing, electrical insulation and mechanical protection
Mining Sector ApprovalNo
Resin MatrixUnfilled
Voltage1 kV
Lug/Stem Connector Included in KitNo
Applicable by Venturi SprayNo
Cable Typemulti core, non shielded, polymeric insulated cable
Flame RetardantNo
ModelCast Resin
Cure MethodRoom
MaterialPolybutadiene
Weight (Imperial)21.2
Maximum Operating Temperature (Celsius)90.0
Applicable by Electrostatic SprayNo
Net Weight (Metric) UOMg
Elongation UOM%
Resin Cure70°F (21°C), 24 hours
Minimum Operating Temperature (Celsius)-20.0
Applicable by Fluid Bed DipNo
Maximum Operating Temperature (Fahrenheit)190.0
Units per Case10.0
Weight (Imperial) UOMoz
Temperature RatingClass B
Flammability RatingNot Self Extinguishing
Dielectric Strength UOMkV/mm
Minimum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Voltage ApplicationLow Voltage
Voltage Rating0.6/1 kV
Maximum Operating Temperature (Celsius) UOMDegree
Net Weight (Metric)600.0
Hardness0 Shore A
Indoor/OutdoorBoth
Product ColorAmber
Applicable by Electrostatic Fluid BedNo
Container Size (Imperial)21.2 oz
Storage Time in Months24.0
Product Series2123
Maximum Operating Temperature (Fahrenheit) UOMDegree
Net Weight (Imperial)21.2
For connection of paper - with plasticinsulated cablesNo
