3M Products & Supplies

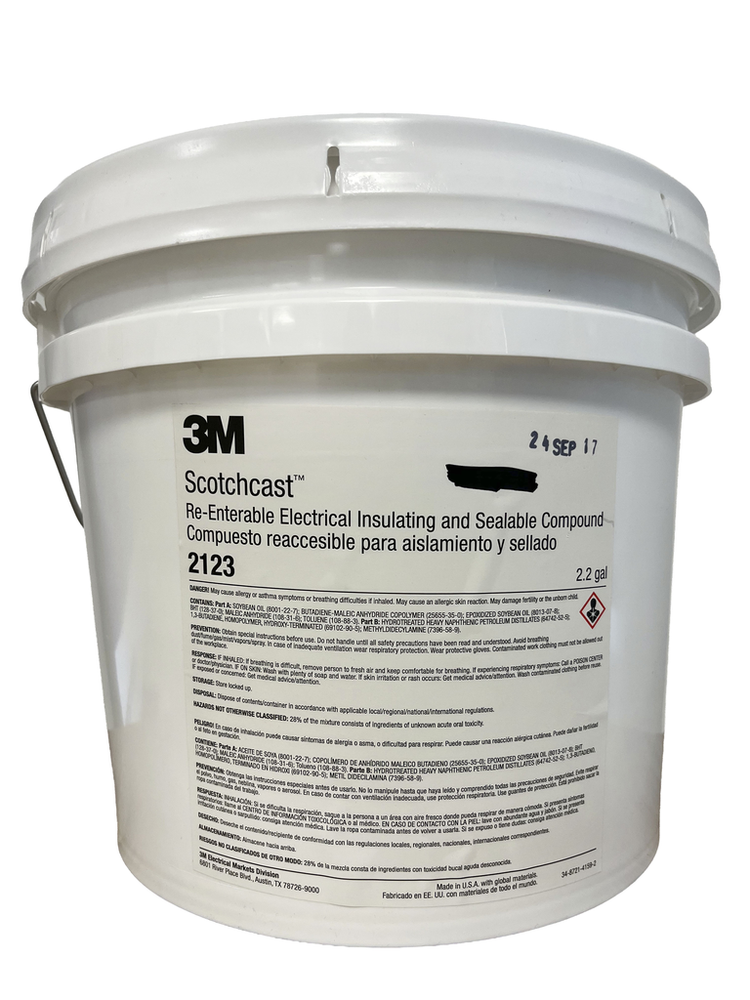

3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123D, (2.2 GALLONS), 1/Case - 7100015525

SKU: 7100015525
MPN: 7100015525
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128606148
3M ID: 80611609399
5 Digit UPC: 60614
$746.78 each
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Re-Enterable Electrical Insulating Resin 2123 is a soft, two-part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re-enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.

Features

  • Typical hardness (ASTM D2240) - 0 Shore A
  • Has 62 minute gel time at 23 °C (73 °F)
  • High performance re-enterable resin in bag package for sealing and insulating low voltage cables connections in electrical boxes
  • Withstands a max temperature in continuous use of 90 °C (194 °F)
  • Elongates 300% longer than its original size for easy insulation or wrapping
  • Useful for sealing and electrical insulation in potting applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Resin Cure70°F (21°C), 24 hours
Applicable by Electrostatic Fluid BedNo
Storage Time in Months36.0
Voltage Rating0.6/1 kV
Re-enterableYes
Dielectric Strength9.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Resin MatrixUnfilled
Dielectric Strength UOMkV/mm
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
Flame RetardantNo
Flammability RatingNot Self Extinguishing
Cable Typemulti core, non shielded, polymeric insulated cable
Mining Sector ApprovalNo
Applicable by Fluid Bed DipNo
MaterialPolybutadiene
Maximum Operating Temperature (Celsius)90.0
Elongation UOM%
ModelCast Resin
Dielectric Strength (V/mil)240 V/mil
Voltage1 kV
Voltage ApplicationLow Voltage
Temperature RatingClass B
Indoor/OutdoorBoth
Maximum Operating Temperature (Fahrenheit)190.0
Lug/Stem Connector Included in KitNo
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature90ºC (194ºF) continuous; overload rating 130ºC (266ºF)
For connection of paper - with plasticinsulated cablesNo
Product Series2123
FlexibilitySoft
ApplicationSealing, electrical insulation and mechanical protection
Applicable by Electrostatic SprayNo
Container Size (Imperial)2.2 gal
Maximum Operating Temperature (Fahrenheit) UOMDegree
Hardness0 Shore A
Product TypeResin
Applicable by Venturi SprayNo
Cure MethodRoom
Product MarketsElectrical Construction
Minimum Operating Temperature (Celsius)-20.0
Product ColorAmber
