3M Products & Supplies

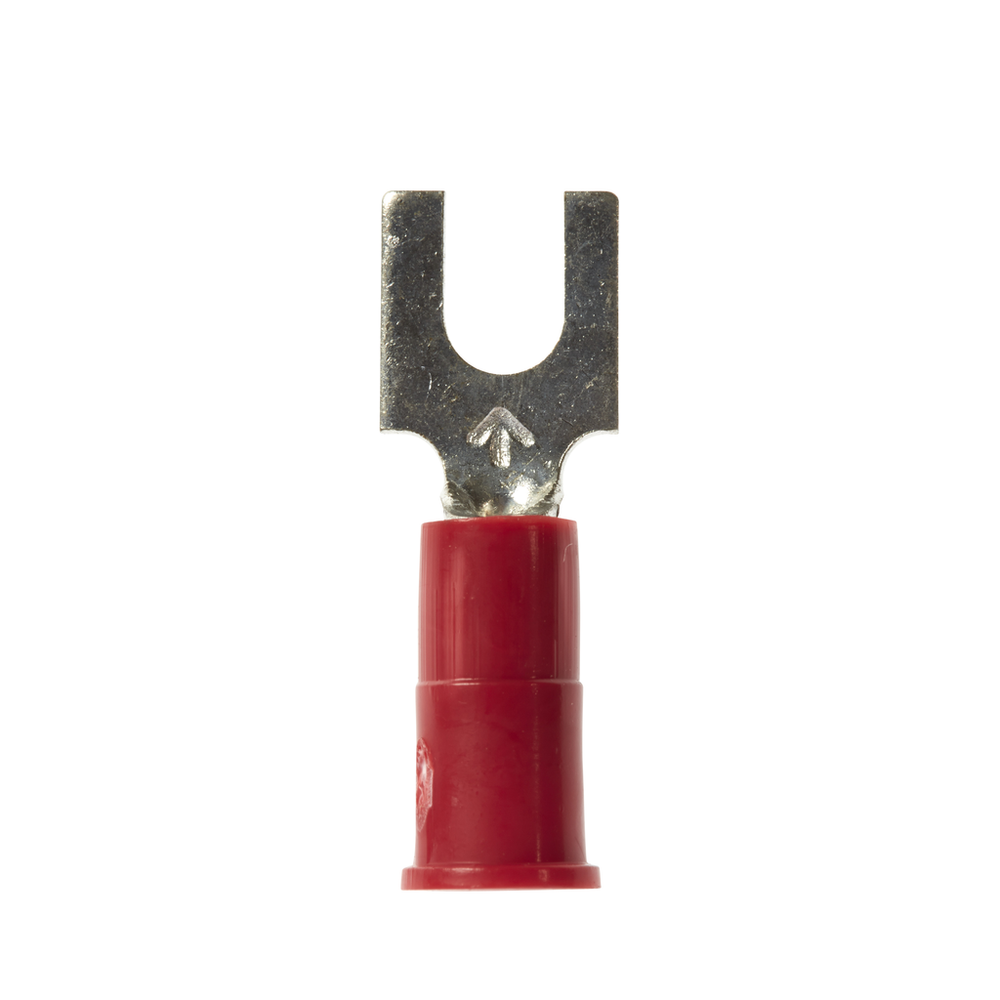

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV18-6FB/SX, suitable for use in a terminal block, 500/Case - 7100165300

Sold As: 500-Pack
SKU: 7100165300
MPN: 7100165300
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589509
3M ID: 80611465966
5 Digit UPC: 58950
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleBrazed
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeBlock
Stud Size#6
UL File NumberE23438
Clearance (C)0.25 Inch
Barrel Inside Diameter0.070 Inch
Overall Length (Imperial) UOMin
Dimension E0.70 Inch
Maximum Conductor Size (Metric).0823 mm²
Overall Width (Imperial)0.25
Terminal StyleBlock
Overall Length (Imperial)0.85
Packaging100 per bottle
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Imperial) UOMin
