3M Products & Supplies

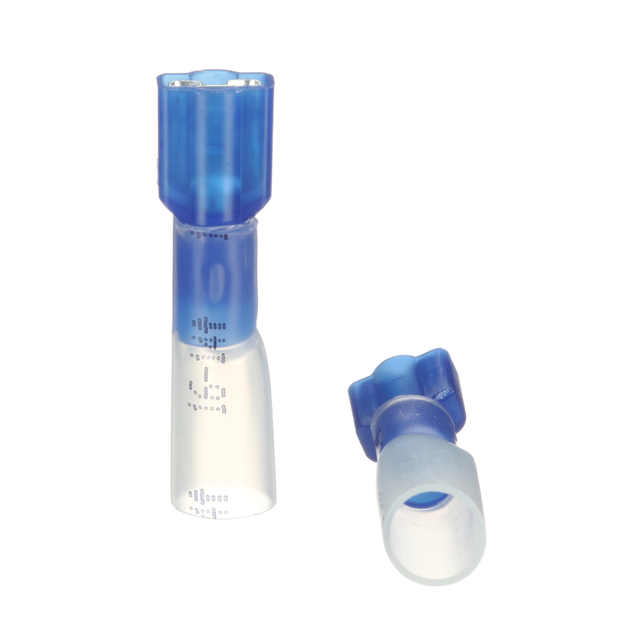

3M™ Scotchlok™ Female Disconnect Heatshrink Nylon Insulated, 25/bottle, MNHU18-250DFIX, 125/Case - 7010320786

Sold As: 25-Pack
SKU: 7010320786
MPN: 7010320786
For an accurate lead time please contact us
UPC: 10051128589165
3M ID: 80611465628
5 Digit UPC: 58916
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Mates with 0.25-in wide male tab

Downloads

Specifications

Country of OriginUnited States
Terminal TypeDisconnect
Minimum Conductor Size (Metric).34 mm²
Overall Length (Imperial) UOMin
Pad Width0.25
Connection Width (Metric) UOMmm
Overall Diameter (Imperial) UOMin
Insulation MaterialHeat Shrink
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)1 mm²
Male Tab Width (W')0.250 Inch
Connection Width (Imperial)0.25
Terminal StyleFully Insulated
Overall Length (Imperial)1.2
Disconnect TypeFemale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Diameter (D)0.23 Inch
Barrel StyleButted
Connection Width (Metric)6.35
Fastener OrientationFemale
Units per Case125.0
Minimum Conductor Size (Imperial)22 AWG
Packaging25 per bottle
Overall Width (Imperial)0.37
Overall Width (Imperial) UOMin
Overall Diameter (Imperial)0.23
Maximum Conductor Size (Imperial)18 AWG
Tab Width0.187
Barrel Inside Diameter0.080 Inch
