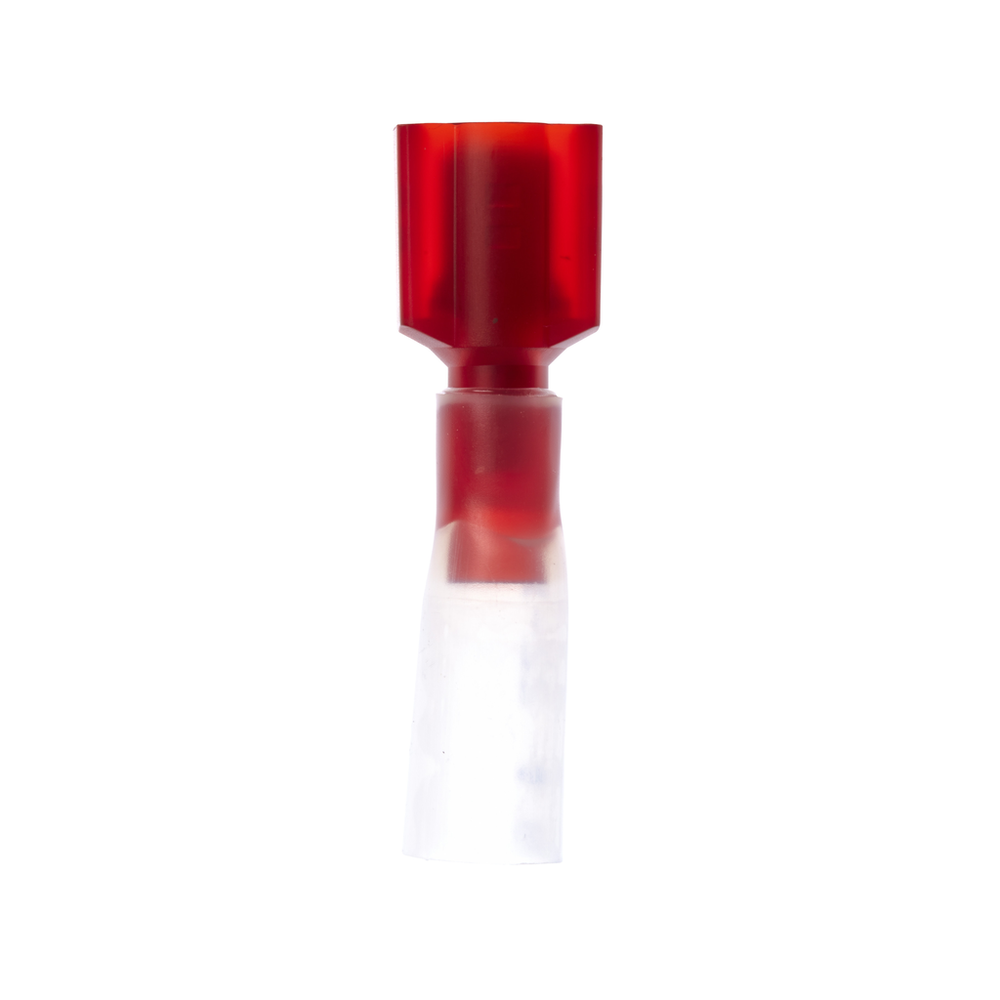

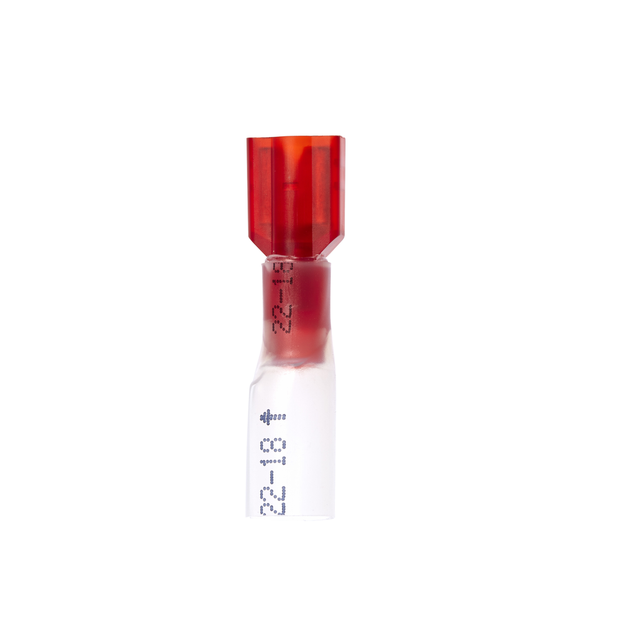

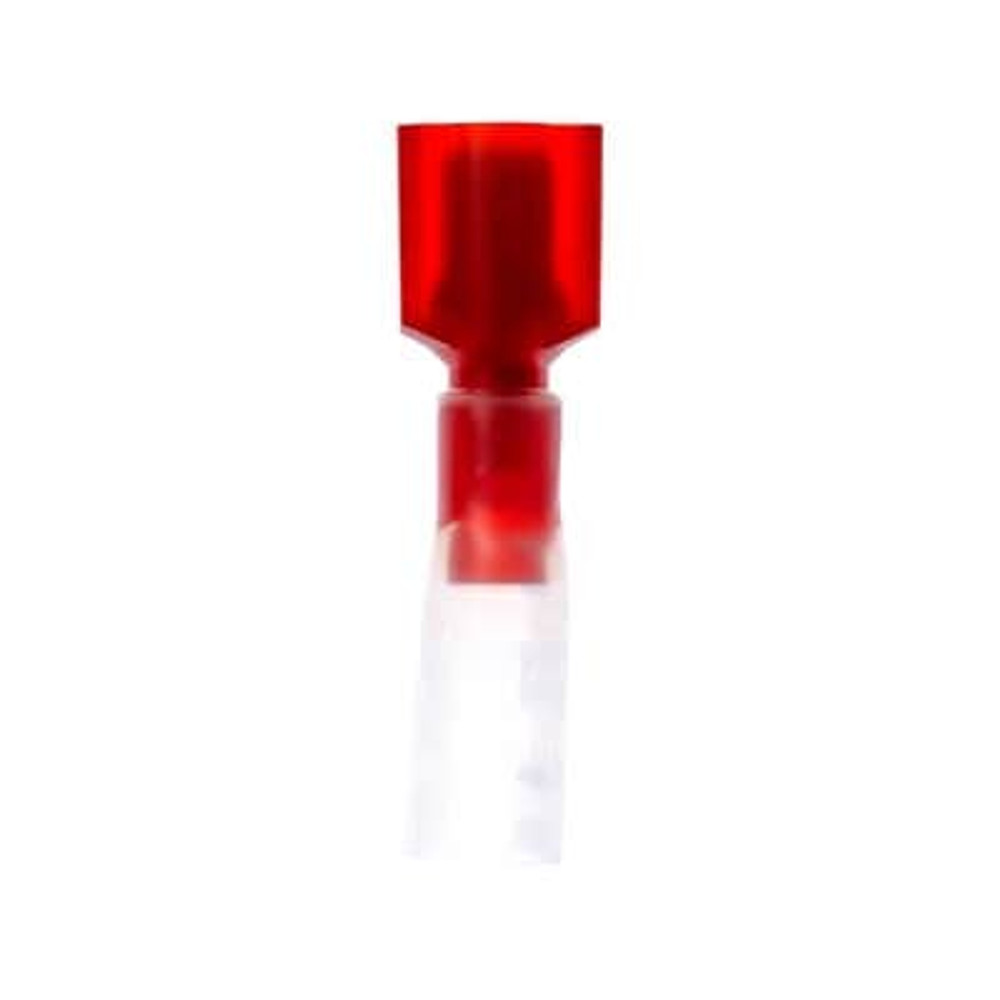

3M™ Scotchlok™ Male Disconnect Heatshrink Nylon Insulated, 25/bottle, MNHU18-250DMIX, 125/Case - 7000133397

Sold As: 25-Pack
SKU: 7000133397
MPN: 7000133397
For an accurate lead time please contact us
UPC: 00051128589175
3M ID: 80611465636
5 Digit UPC: 58917
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal allows for quick and easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • This male disconnect terminal offers excellent holding force
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Mates with 0.25-in wide female tab

Downloads

Specifications

Country of OriginUnited States
Product ColorRed
Fastener OrientationMale
Barrel Inside Diameter0.065 Inch
Terminal StyleFully Insulated
Insulation MaterialHeat Shrink
Male Tab Width (W')0.250 Inch
Maximum Conductor Size (Metric)1 mm²
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Diameter (Imperial)0.3
MaterialPlastic
Tab Width0.187
Units per Case125.0
Overall Length (Metric)30.48
Conductor Sizes (Imperial)22 - 18 AWG
Connection Width (Metric)6.35
Insulation ColorRed
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Imperial)0.44
Disconnect TypeMale
Maximum Insulation Outer Diameter (Imperial)0.145
Diameter (D)0.30 Inch
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric)11.17
Connection Width (Imperial) UOMin
Barrel StyleButted
Voltage ApplicationLow Voltage
Packaging25 per bottle
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Imperial)0.25
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Pad Width0.25
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Overall Diameter (Imperial) UOMin
Overall Length (Imperial)1.2
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Metric) UOMmm
Terminal TypeDisconnect
Maximum Recommended Voltage Rating UOMV
