3M Products & Supplies

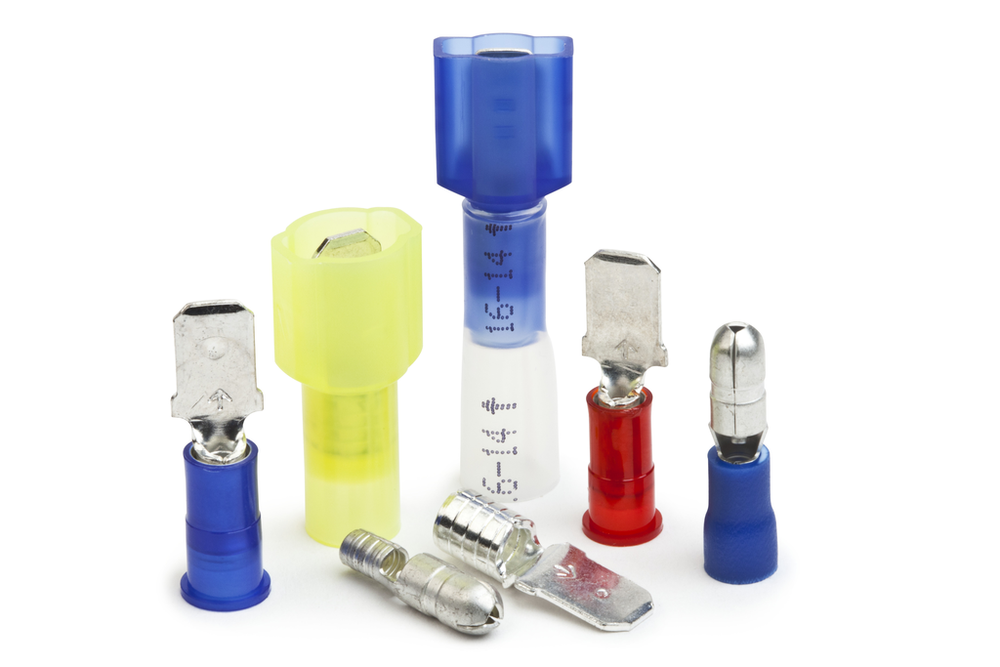

3M™ Scotchlok™ Male Disconnect Heatshrink Nylon Insulated, 25/bottle, MNHU14-250DMIX, 125/Case - 7000133392

Sold As: 25-Pack
SKU: 7000133392
MPN: 7000133392
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589083
3M ID: 80611465545
5 Digit UPC: 58908
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal allows for quick and easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • This male disconnect terminal offers excellent holding force
  • Mates with 0.25-in wide female tab
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

Country of OriginUnited States
Disconnect TypeMale
Overall Length (Imperial) UOMin
Overall Width (Metric)11.17
Minimum Conductor Size (Metric)1.5 mm²
Terminal TypeDisconnect
Diameter (D)0.30 Inch
Overall Width (Metric) UOMmm
Product ColorBlue
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Diameter (Imperial) UOMin
Overall Width (Imperial)0.44
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Metric) UOMmm
Overall Length (Imperial)1.2
Units per Case125.0
Pad Width0.25
Packaging25 per bottle
Maximum Conductor Size (Imperial)14 AWG
Terminal StyleFully Insulated
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating600.0
Barrel Inside Diameter0.085 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation MaterialHeat Shrink
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Diameter (Imperial)0.3
Fastener OrientationMale
Male Tab Width (W')0.250 Inch
Tab Width0.250
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleButted
MaterialPlastic
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Metric)2.5 mm²
Insulation ColorBlue
Connection Width (Imperial)0.25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Voltage ApplicationLow Voltage
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)6.35
Overall Length (Metric)30.48
