3M Products & Supplies

3M™ Scotchlok™ Female Disconnect Heatshrink Nylon Insulated, 25/bottle, MNHU10-250DFIX, 125/Case - 7000133382

Sold As: 25-Pack
SKU: 7000133382
MPN: 7000133382
For an accurate lead time please contact us
UPC: 00051128588956
3M ID: 80611465412
5 Digit UPC: 58895
$64.24 ($2.57 / Count)
Hurry up! Current stock:

Product Description

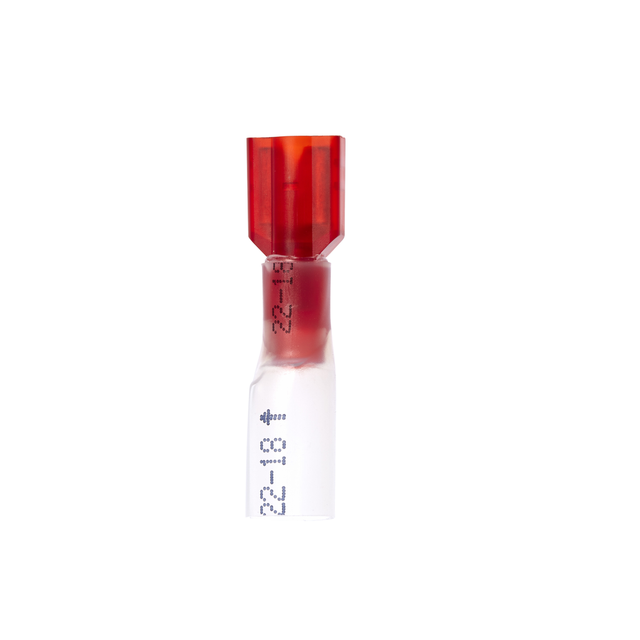

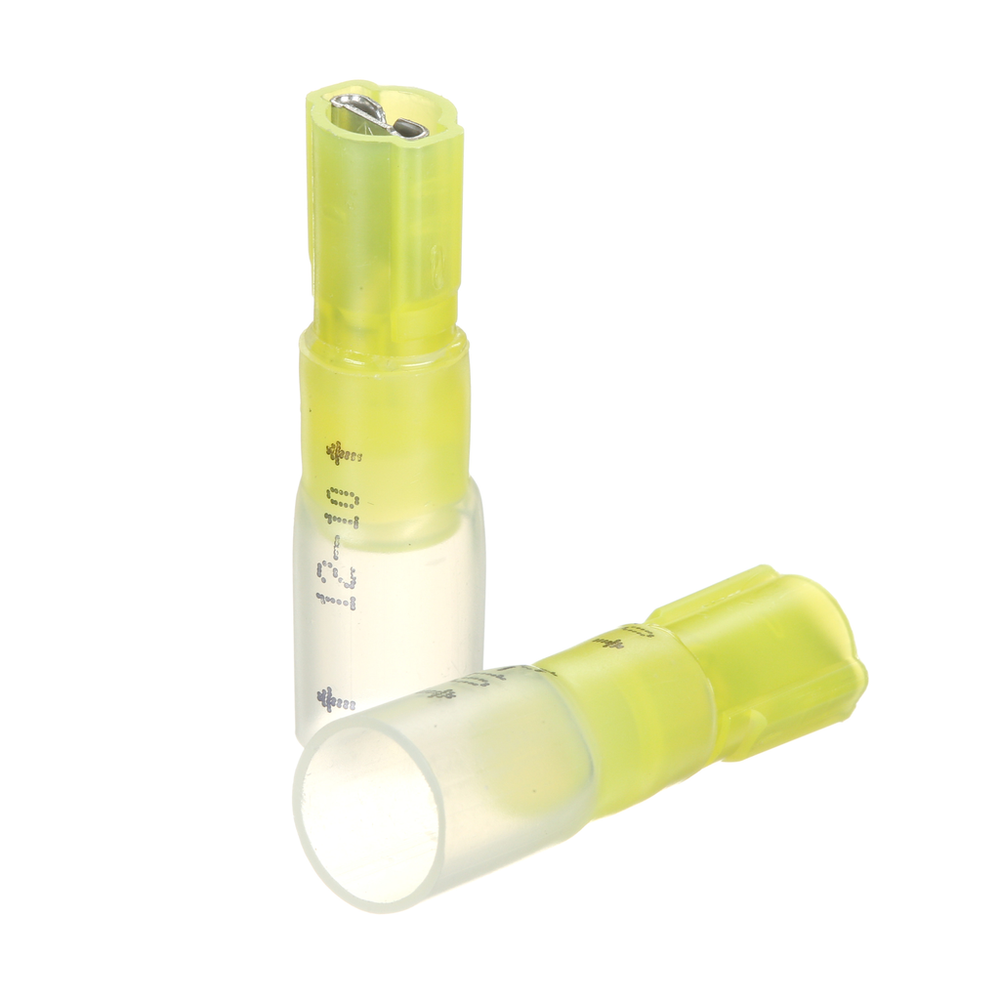

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Mates with 0.25-in wide male tab
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Connector / Connector ToolConnector
Connector StyleInsulation Displacement
Maximum Conductor Size (Metric)6 mm²
Overall Width (Metric) UOMmm
Connection Width (Imperial) UOMin
Diameter (D)0.32 Inch
Terminal TypeDisconnect
Minimum Conductor Size (Metric)4 mm²
Disconnect TypeFemale
Overall Length (Metric) UOMmm
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Imperial)0.32
Connection Width (Metric) UOMmm
Overall Length (Metric)30.48
Tab Width0.250
MaterialETP Copper
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorYellow
Barrel Inside Diameter0.165 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Connection Width (Metric)6.35
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.39
Male Tab Width (W')0.250 Inch
Insulation MaterialHeat Shrink
Pad Width0.25
Packaging25 per bottle
Overall Width (Metric)9.4
Overall Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Connection Width (Imperial)0.25
Fastener OrientationFemale
Grease Filling Against CorrosionNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Interrupt Free ShiftingNo
Maximum Recommended Voltage Rating UOMV
Connection TypeWire
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleButted
Overall Length (Imperial) UOMin
Terminal StyleFully Insulated
Units per Case125.0
Conductor Sizes (Imperial)12 - 10 AWG
Maximum Conductor Size (Imperial)10 AWG
Flame RetardantNo
Insulation ColorYellow
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)1.2
Barrel Length (Imperial)0.25 Inch
