3M Products & Supplies

3M™ Scotchlok™ Fork Non-Insulated, 100/bottle, M14-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010399921

Sold As: 100-Pack
SKU: 7010399921
MPN: 7010399921
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586648
3M ID: 80611458094
5 Digit UPC: 58664
$46.67 ($0.47 / Count)
Hurry up! Current stock:

Product Description

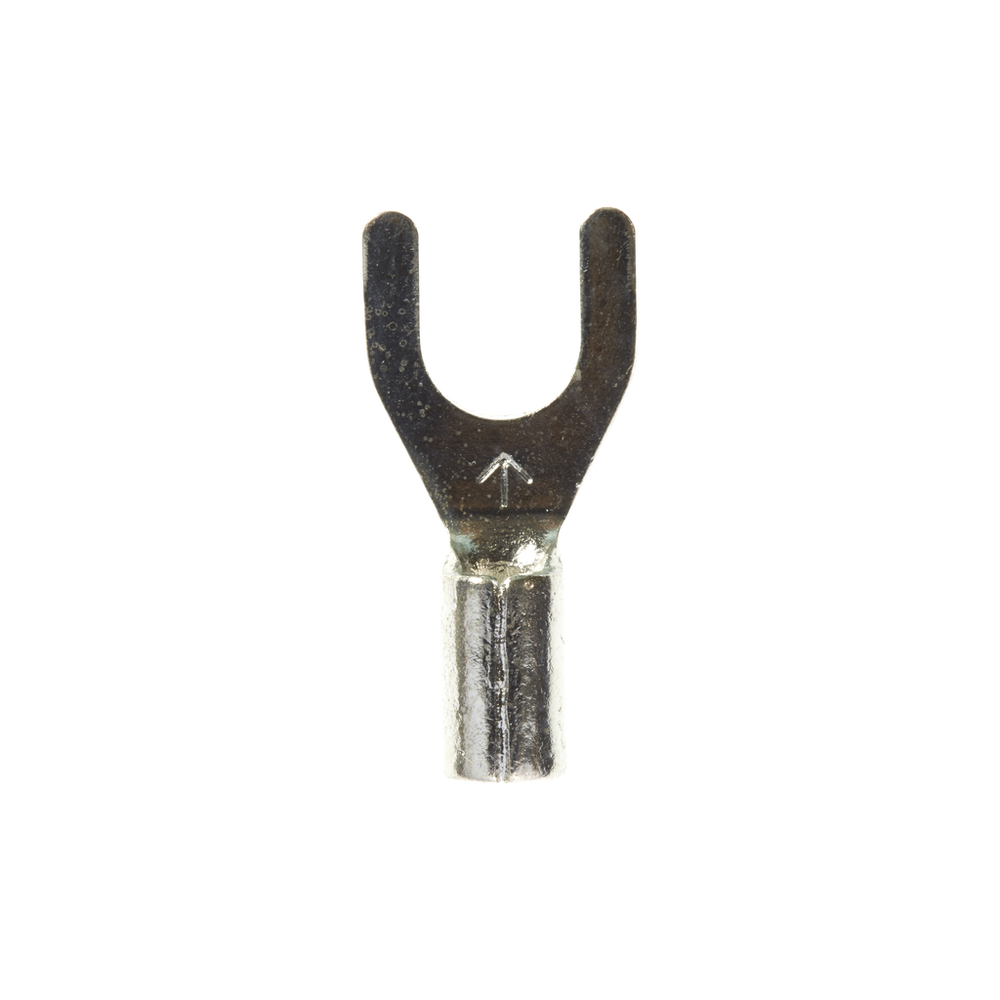

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Wider tongue design for use on free-standing studs
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Downloads

Specifications

Country of OriginUnited States
Fork TypeStandard
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleBrazed
Barrel Inside Diameter0.090 Inch
Minimum Conductor Size (Metric)1.31 mm²
Stud Size#10
Terminal StyleStandard
Clearance (C)0.29 Inch
UL File NumberE23438
Terminal TypeFork
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08 mm²
Overall Length (Imperial) UOMin
Dimension E0.54 Inch
Insulation MaterialNon-insulated
Overall Width (Imperial)0.34
Packaging100 per bottle
Overall Length (Imperial)0.7
Units per Case500.0
Maximum Conductor Size (Imperial)14 AWG
