3M Products & Supplies

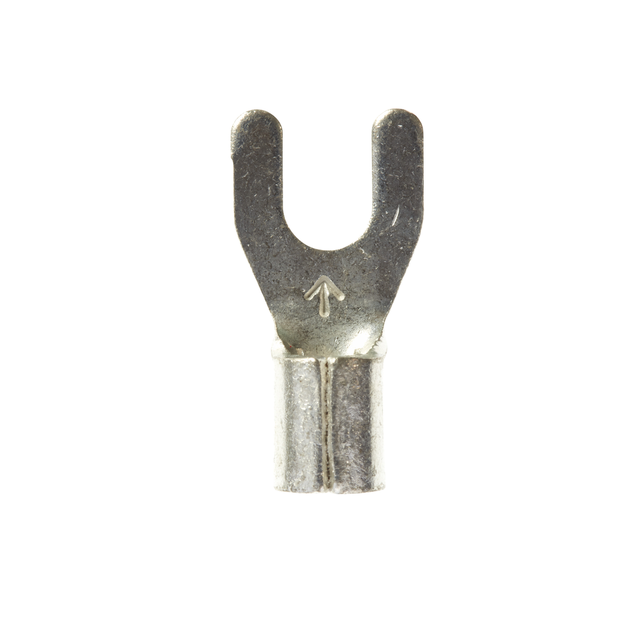

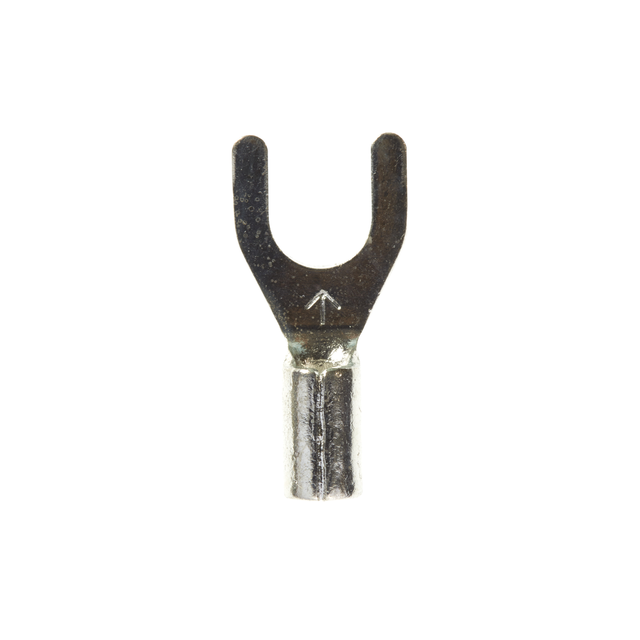

3M™ Scotchlok™ Fork Non-Insulated, 50/bottle, M10-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010399929

Sold As: 50-Pack
SKU: 7010399929
MPN: 7010399929
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128586874
3M ID: 80611458326
5 Digit UPC: 58687
$33.71 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Wider tongue design for use on free-standing studs

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.38
Minimum Conductor Size (Imperial)12 AWG
Clearance (C)0.29 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Units per Case500.0
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial) UOMin
Terminal TypeFork
Overall Length (Imperial)0.73
Barrel StyleBrazed
Packaging50 per bottle
Fork TypeStandard
Minimum Conductor Size (Metric)3.31 mm²
Stud Size#10
Insulation MaterialNon-insulated
Overall Width (Imperial) UOMin
Dimension E0.54 Inch
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26 mm²
