3M Products & Supplies

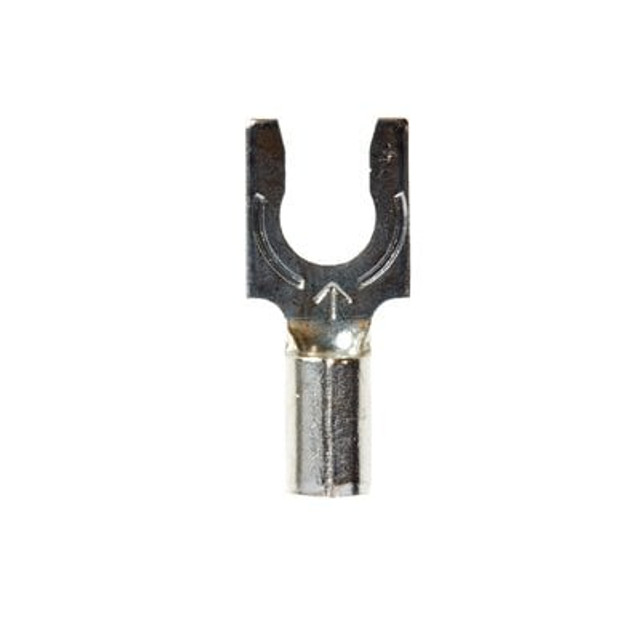

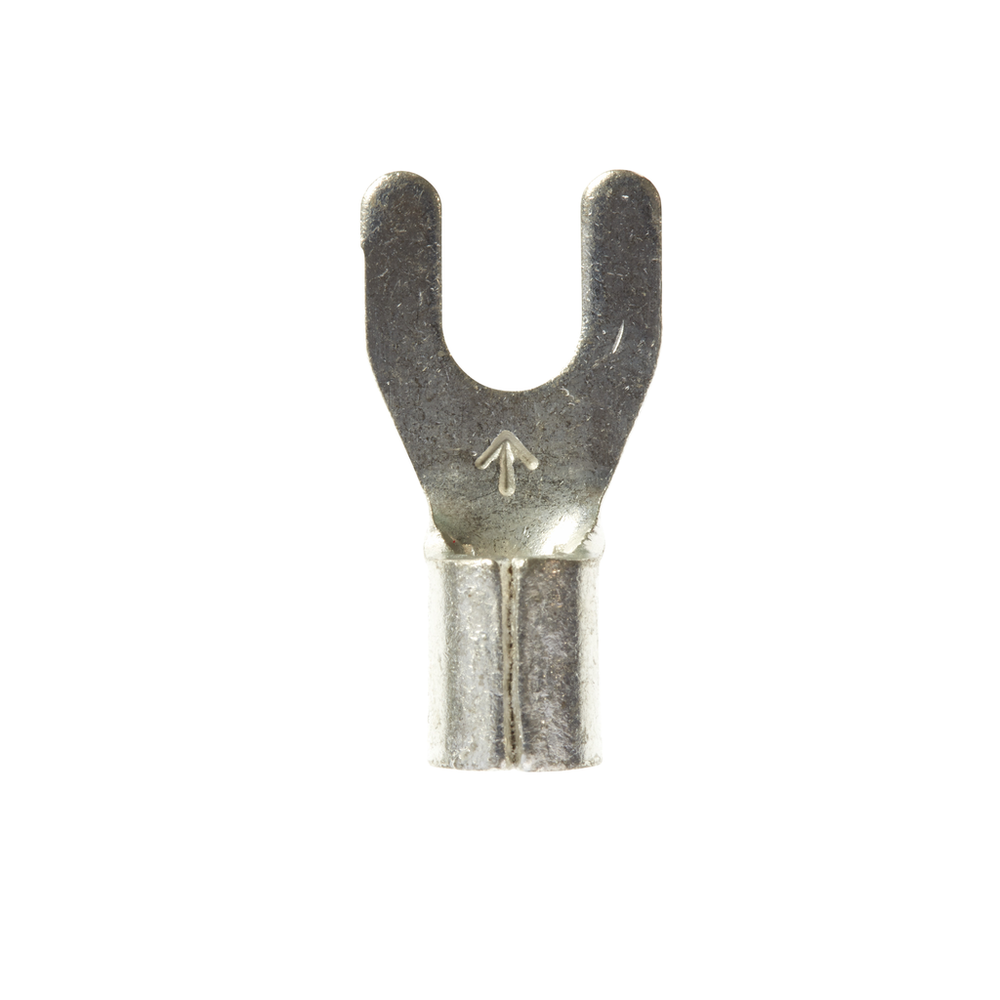

3M™ Scotchlok™ Fork Non-Insulated, 50/bottle, M10-8FX, wider-tongue design for use on free-standing studs, 500/Case - 7010351131

Sold As: 500-Pack
SKU: 7010351131
MPN: 7010351131
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587161
3M ID: 80611458615
5 Digit UPC: 58716
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider tongue design for use on free-standing studs
  • Electrolytic copper construction offers good conductivity
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Fork TypeStandard
Minimum Conductor Size (Metric)3.31 mm²
Packaging50 per bottle
Overall Width (Imperial)0.38
Overall Length (Imperial)0.73
Stud Size#8
Overall Length (Imperial) UOMin
UL File NumberE23438
Dimension E0.54 Inch
Barrel StyleBrazed
Barrel Inside Diameter0.135 Inch
Maximum Conductor Size (Metric)5.26 mm²
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Clearance (C)0.29 Inch
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Terminal TypeFork
Insulation MaterialNon-insulated
