3M Products & Supplies

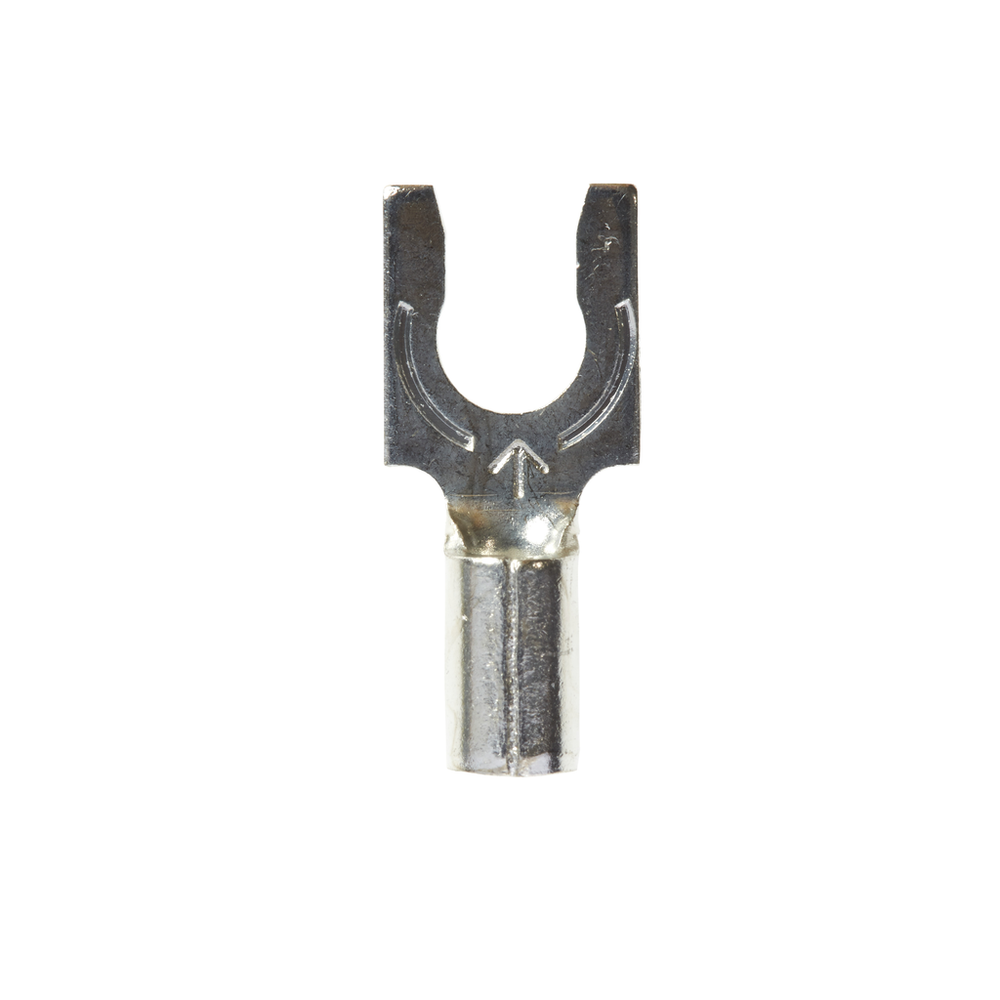

3M™ Scotchlok™ Fork Non-Insulated, 100/bottle, M14-8FX, wider-tongue design for use on free-standing studs, 500/Case - 7010398235

Sold As: 500-Pack
SKU: 7010398235
MPN: 7010398235
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128590256
3M ID: 80611466717
5 Digit UPC: 59025
$308.27 ($0.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Wider tongue design for use on free-standing studs
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.09 Inch
Terminal StyleStandard
Fork TypeStandard
UL File NumberE70512
Barrel StyleBrazed
Insulation MaterialNon-insulated
Barrel Length (Imperial)0.25 Inch
Terminal TypeFork
Dimension E0.54 Inch
Overall Length (Imperial) UOMin
Clearance (C)0.29 Inch
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial) UOMin
Overall Length (Imperial)0.7
Overall Width (Imperial)0.34
Maximum Conductor Size (Imperial)14 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size#8
Units per Case500.0
Packaging100 per bottle
