3M Products & Supplies

3M™ Scotchlok™ Fork Non-Insulated, 50/bottle, M10-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7010351291

Sold As: 500-Pack
SKU: 7010351291
MPN: 7010351291
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588618
3M ID: 80611465073
5 Digit UPC: 58861
$393.34 ($0.79 / Count)
Hurry up! Current stock:

Product Description

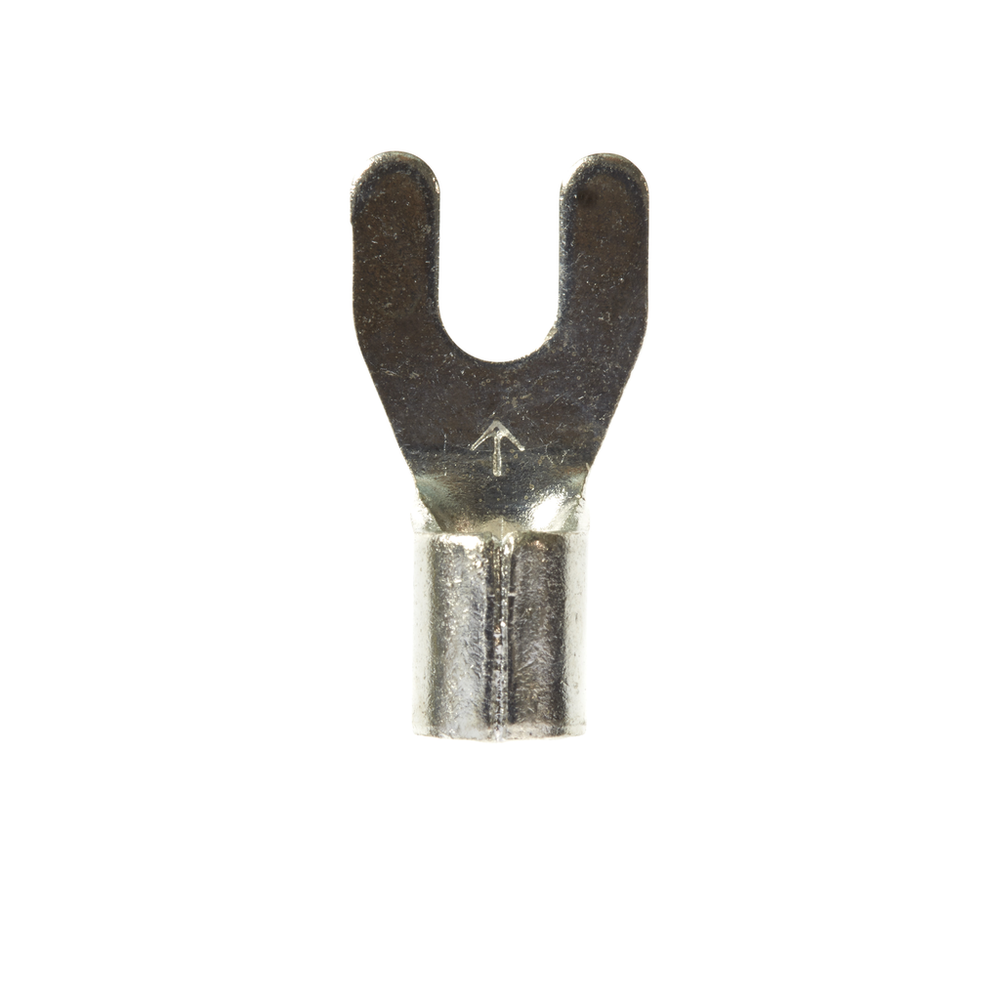

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Wider tongue design for use on free-standing studs
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Downloads

Specifications

Country of OriginUnited States
Fork TypeStandard
Overall Width (Imperial)0.38
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26 mm²
Dimension E0.54 Inch
Overall Length (Imperial) UOMin
Units per Case500.0
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Terminal TypeFork
Barrel StyleBrazed
UL File NumberE70512
Barrel Inside Diameter0.135 Inch
Insulation MaterialNon-insulated
Overall Length (Imperial)0.73
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Packaging50 per bottle
Clearance (C)0.29 Inch
Stud Size#6
