3M Products & Supplies

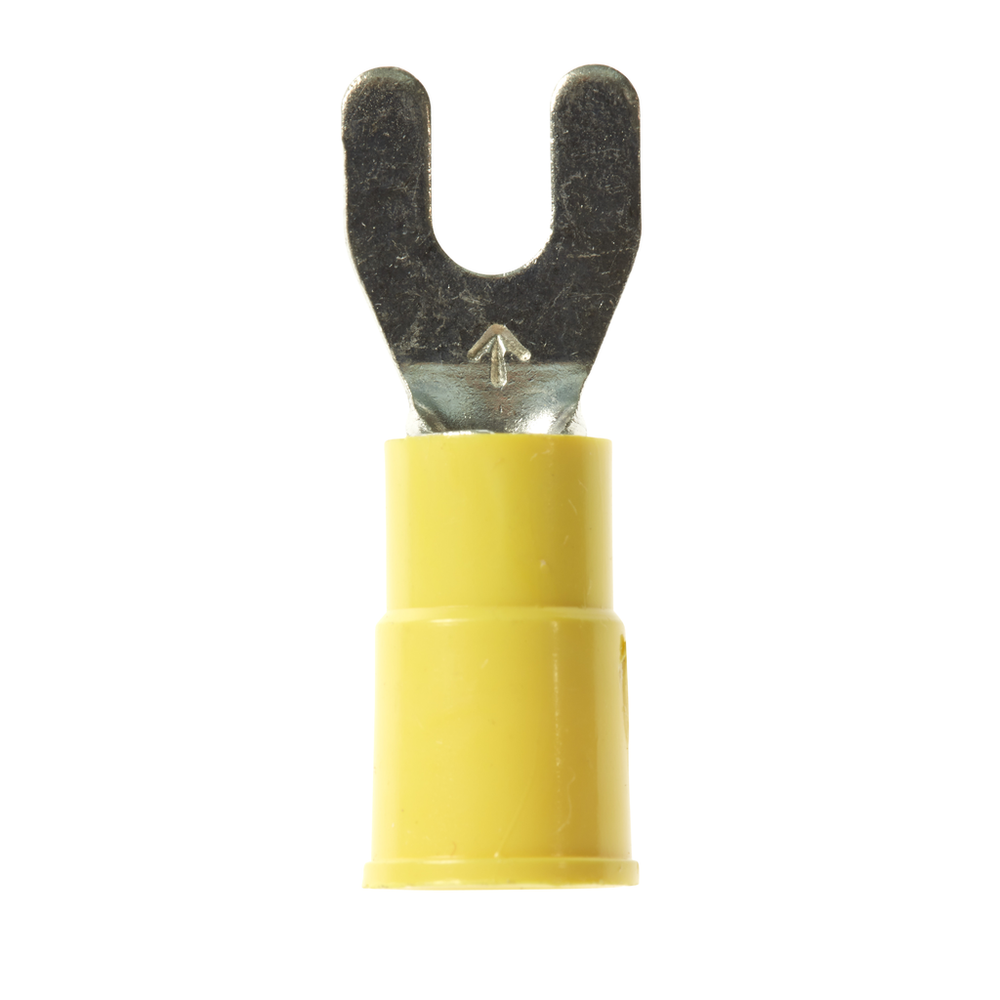

3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MV10-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7100165250

Sold As: 500-Pack
SKU: 7100165250
MPN: 7100165250
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587611
3M ID: 80611464076
5 Digit UPC: 58761
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Wider-tongue design for use on free-standing studs
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Clearance (C)0.29 Inch
Barrel Inside Diameter0.135 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Fork TypeStandard
Packaging50 per bottle
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Overall Length (Imperial)1.03
Insulation MaterialVinyl
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Dimension E0.84 Inch
Terminal TypeFork
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleBrazed
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial)0.38
Minimum Conductor Size (Metric)3.31 mm²
Stud Size#6
Maximum Conductor Size (Metric)5.26 mm²
Operating Temperature Range (Celsius)-40 °C to 105 °C
UL File NumberE23438
