3M Products & Supplies

3M™ Scotchlok™ Locking Fork, Non-Insulated Brazed Seam M18-6FLK, Stud Size 6, 1000/Case - 7100184972

Sold As: 1000-Pack
SKU: 7100184972
MPN: 7100184972
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007137337
3M ID: 80610134621
5 Digit UPC: 13733
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

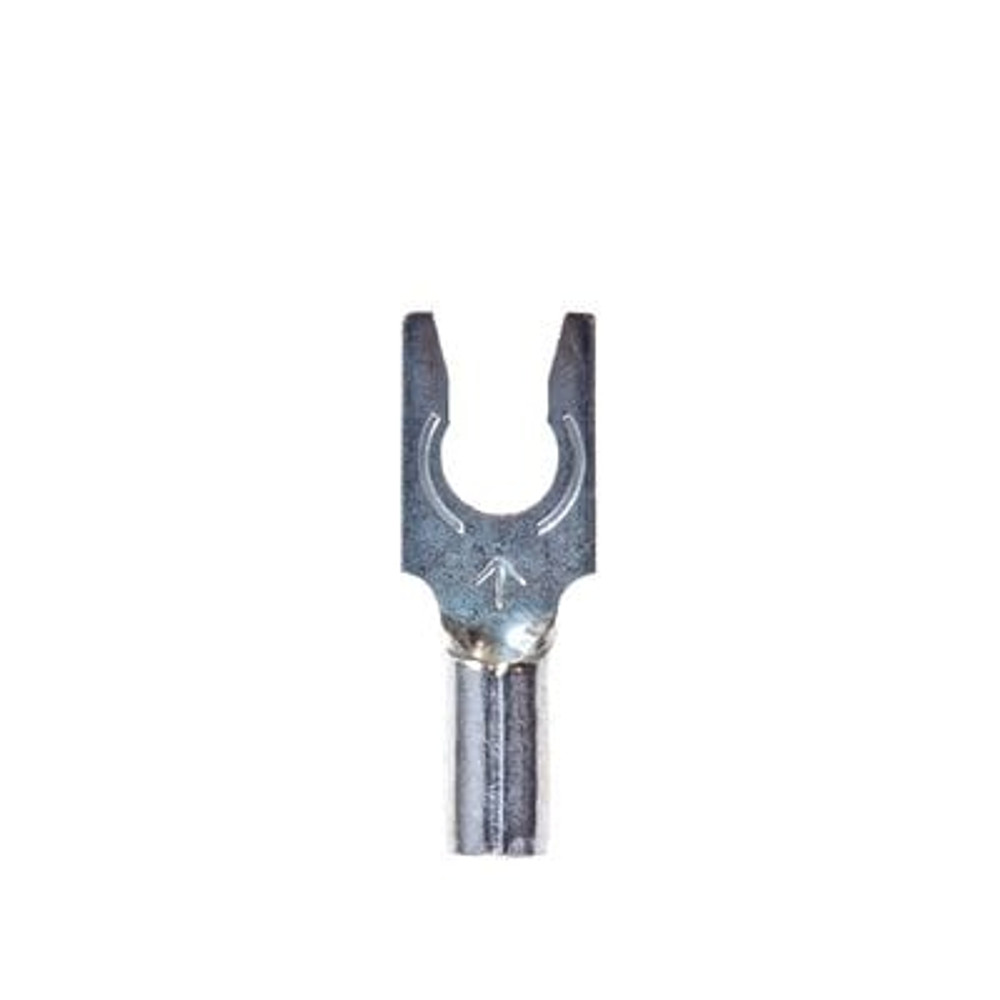

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Fork TypeLocking Fork
Overall Length (Imperial)0.68
Maximum Conductor Size (Metric).0823 mm²
Barrel StyleBrazed
Packaging1000 per bulk box
Dimension E0.5 Inch
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.07 Inch
Stud Size#6
Terminal StyleLocking
Overall Width (Imperial)0.25
Insulation MaterialNon-insulated
Clearance (C)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE23438
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeFork
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Lock Width0.27 Inch
Minimum Conductor Size (Metric)0.326 mm²
Units per Case1000.0
Barrel Length (Imperial)0.25 Inch
